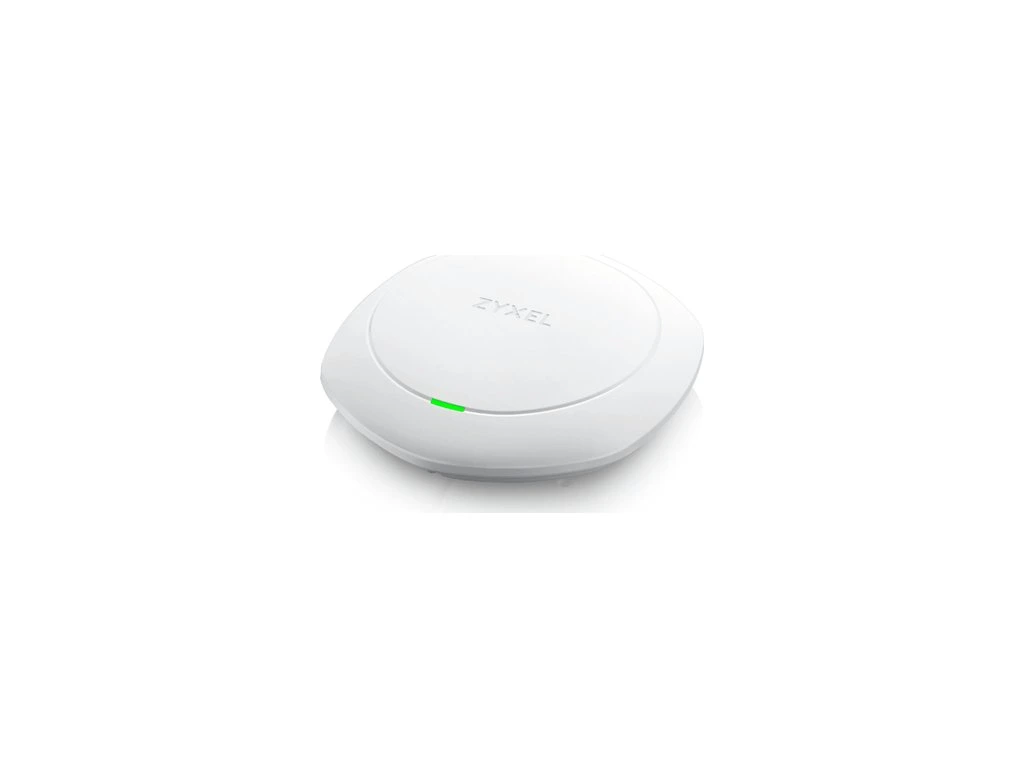

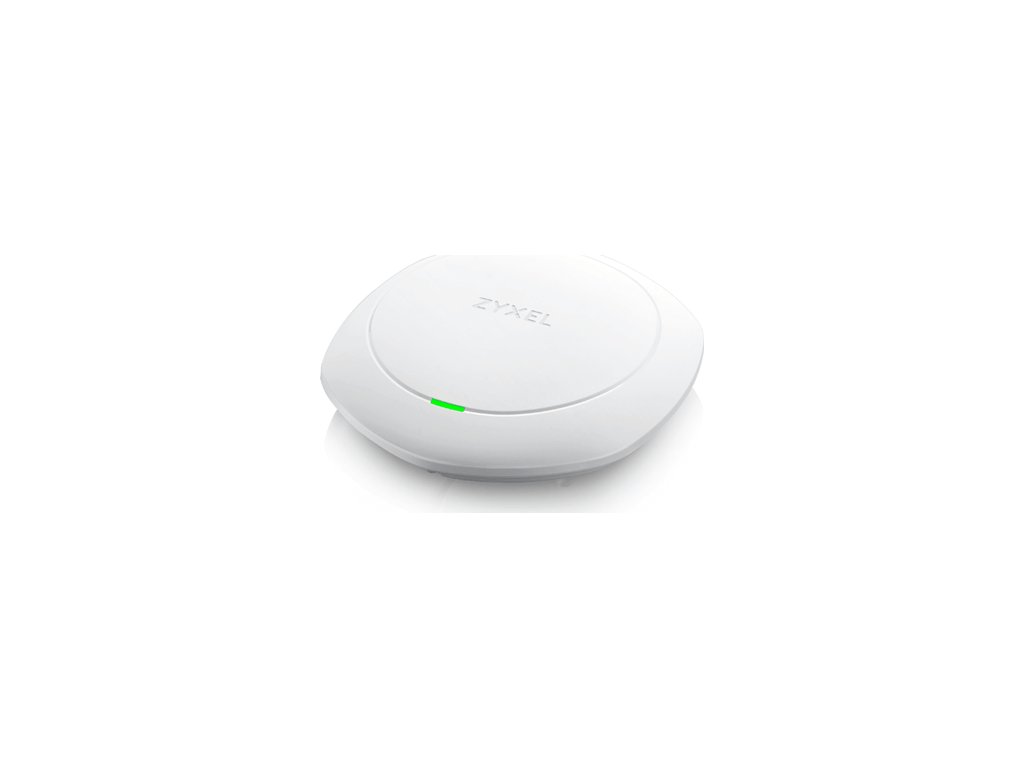

Zyxel WAC6303D-S Wireless AC Access Point, Dual radio, 3x3 Wave2 Smart Antenna, PoE, no PSU

Detailní popis produktu

WAC6303D-S 802.11ac Wave2 3x3 Smart Antenna Access Point with BLE Beacon (no PSU)

Špičkové bezdrátové služby a skutečná flexibilita do míst s vysokým provozem

Přístupový bod WAC6303D-S je vybaven inteligentní anténou, která klientům i v místech s vysokým provozem přináší špičkové bezdrátové služby.

WAC6303D-S navíc podporuje řešení NebulaFlexTM Pro, které zahrnuje tříletou licenci Professional Pack a umožňuje tři provozní režimy (samostatný, řízený kontrolerem a řízený pomocí cloudu Nebula).

Technické paramtetry

802.11n/ac premium features:

*2.4GHz: 2x2 MIMO with two spatial stream (SU-MIMO)

*5GHz: 3x3 MIMO with three spatial stream (SU-, or MU-MIMO)

*802.11ac beamforming (transmit beamforming)

*Maximal ratio combining (MRC)

*Low End Sensitivity Improvements (LESI)

*Time Domain Channel Smoothing

*20-, 40- and 80-MHz channels

*PHY data rates total up to 300 Mbps (11n) + 1300 Mbps (11ac)

*Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

*Cyclic Delay diversity (CSD) support

*Maximum Likelihood Demodulation (MLD) support

*Low Density Parity Check (LDPC) support

Typical transmit output power (dBm):

*US (FCC) 2.4 GHz: 25 dBm

*US (FCC) 5 G GHz: 28 dBm

*EU (ETSI) 2.4 GHz: 20 dBm

*EU (ETSI) 5 G GHz: 26 dBm

Antenna gain:

*2.4 GHz: 3 dBi; 2x2 MIMO

*5 GHz: 4 dBi 3x3 MIMO

Support data rate:

*802.11a/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps

*802.11n: up to 300 Mbps in MCS15 (40MHz; 2 Spatial Streams; GI=400ns)

*802.11ac:up to 1300 Mbps in MCS9 (80MHz; 3 Spatial Streams; GI=400ns)

Receive sensitivity: Min. Rx sensitivity up to -103 dBm

Number of 10/100/1000M LAN: 2 x switch ports

Console port: 4-Pin serial

Input power requirements: Direct DC power or Power over Ethernet (PoE)*2

PoE:

*802.3at (full mode)

*802.3af (Restrict 2.4G & 5G radio to one transmit stream only.)

PoE power draw:16.2W (802.3at PoE)

Item:

*Dimensions (WxDxH)(mm/in.): 211 x 223 x 39 / 8.31 x 8.78 x 1.54

*Weight (kg/lb.): 800/1.76

Included accessories: Wall/ceiling mount plate

Plenum rating: Yes

Kensington lock support: Yes

Power supply:

*Input: AC 100-240V, 50~60Hz

*Output: DC +12V 2A (Sold separately)
