ZYXEL NWA220AX-6E,Standalone/NebulaFlex Outdoor WIFI

Detailní popis produktu

Description: 802.11ax (WiFi 6E) Dual-Radio Unified Pro Access Point

Wireless

Standard: IEEE 802.11 ax/ac/n/g/b/a

MIMO: MU-MIMO

Wireless speed :

*2.4GHz: 575 Mbps

*5GHz: 4800 Mbps

*6GHz: 4800 Mbps

Frequency band:

*2.4 GHz

*USA (FCC): 2.412 to 2.462 GHz

*Europe (ETSI): 2.412 to 2.472 GHz

*5 GHz

*USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz

*European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz

*6 GHz

*USA (FCC): 5.925 to 6.425 GHz; 6.525 to 7.125 GHz

*European (ETSI): 5.925 to 6.425 GHz

Bandwidth: 20-, 40-,80- and 160-MHz

Conducted typical transmit output power:

*US (2.4GHz/5GHz) or +/6GHz): 24/28/24dBm

*EU (2.4GHz/5GHz) or +/6GHz): 18/25/19dBm

RF Design

Antenna type: 4x4 + 2x2 Dual-optimized Antenna

Antenna gain:

*2.4 GHz: Peak Gain 3dBi

*5 GHz: Peak Gain 5dBi

*6 GHz: Peak Gain 6dBi

Minimum Receive sensitivity: Min. Rx sensitivity up to -101 dBm

WLAN feature

Band Steering: Yes

WDS/Mesh: Yes

Fast roaming: Pre-authentication, PMK caching and 802.11r/k/v

DCS: Yes

Load balancing : Yes

Advanced Cellular Coexistence: Yes

Security

*Encryption

*WEP

*WPA

*WPA2-PSK

*WPA3

Authentication:

*WPA

*WPA2

*WPA3-Enterprise

*EAP

*IEEE 802.1X

*RADIUS authentication

Access management:

*L2-isolation

*MAC filtering

*Rogue AP detection

Networking

IPv6: Yes

VLANs: Yes

WMM: Yes

U-APSD: Yes

Management

Operating mode:

*Nebula Cloud managed

*Controller-managed

*Standalone

ZON Utility:

*Discovery of Zyxel switches, APs and gateways

*Centralized and batch configurations

*IP configuration

*IP renew

*Device reboot

*Device locating

*Web GUI access

*Firmware upgrade

*Password configuration

Zyxel Wireless Optimizer:

*WiFi AP planning

*WiFi coverage detection

*Wireless health management

Web UI/CLI: Yes

SNMP: Yes

Physical Specifications

Item

Dimensions (WxDxH)(mm/in.): 180 x 180 x 42 mm / 7.09 x 7.09 x 1.65

Weight (g/lb.): 650g/1.43lb

Packing

Dimensions (WxDxH)(mm/in.): 197 x 190 x 60 mm / 7.76 x 7.48 x 2.36

Weight (g/lb.): 780g/1.72lb

Included accessories:

*Mount plate

*Mounting screws

MTBF (hr): 711,333

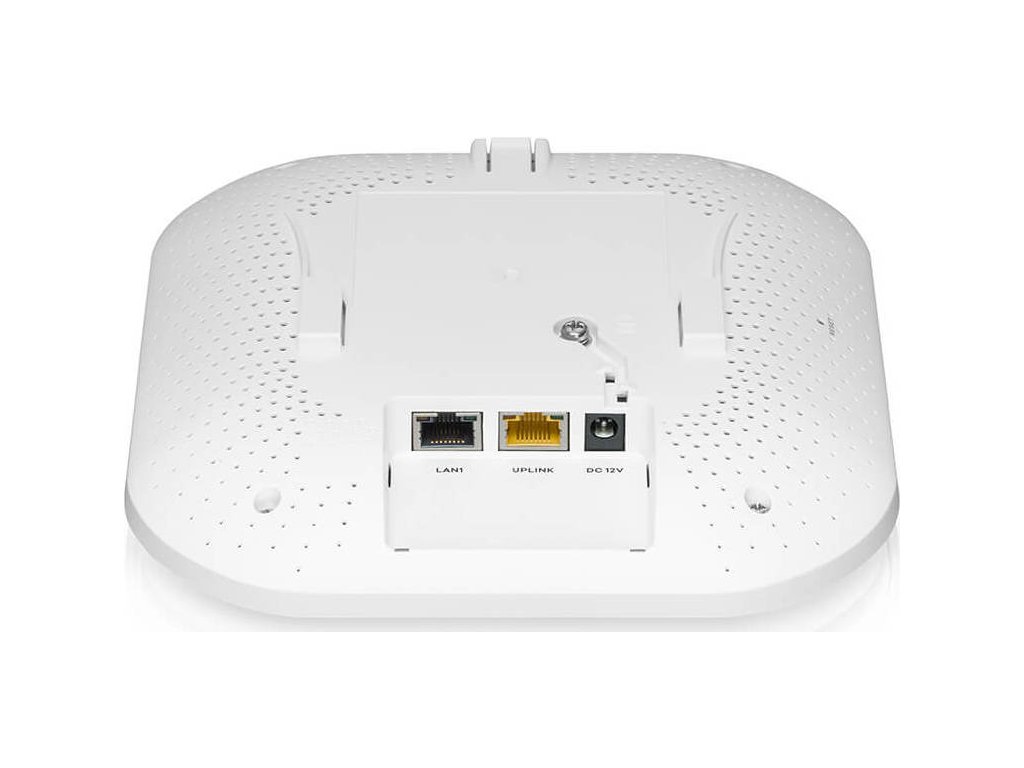

Physical Interfaces

Ethernet port:

*1 x 1/2.5Gbps LAN

*1 x 1Gbps LAN

Power:

*PoE (802.3)at: power draw 21 W

*DC input : 12 VDC 2A

PoE Modes:

*IEEE802.3af: No Wireless

*IEEE802.3at: Unrestricted

*IEEE802.3bt: Unrestricted
