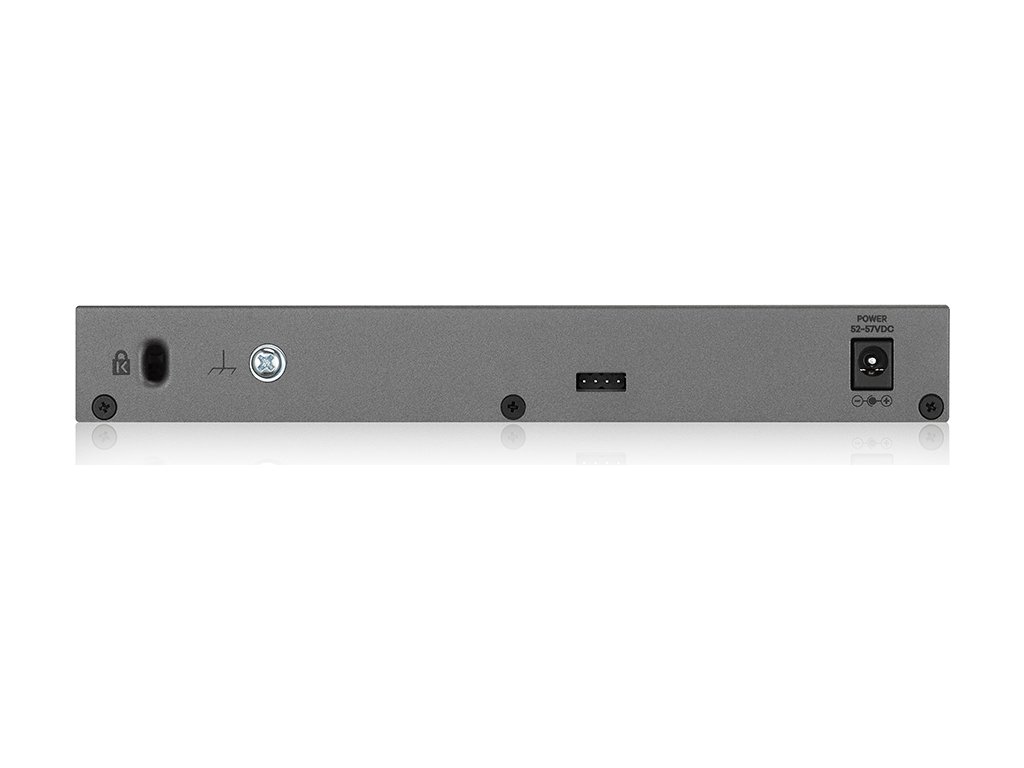

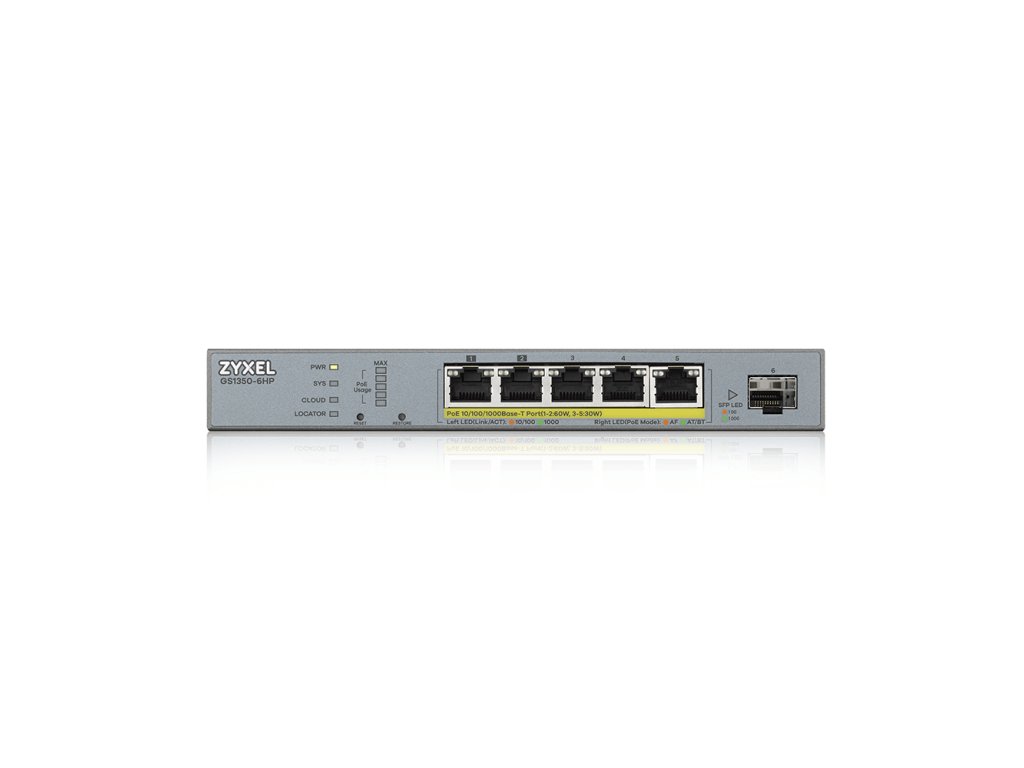

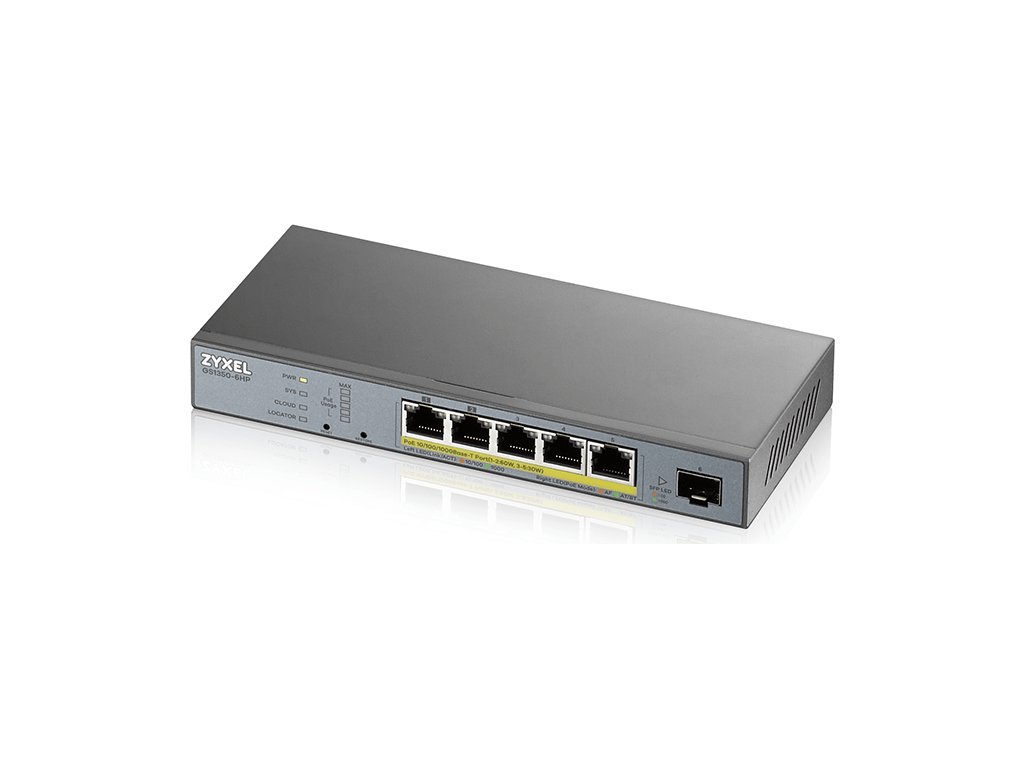

ZyXEL GS1350-6HP, 6 Port managed CCTV PoE switch, long range, 60W, 802.3BT (1 year NCC Pro pack license bundled)

Detailní popis produktu

GS1350-6HP, 6 Port managed CCTV PoE switch, long range, 60W, 802.3BT (1 year NCC Pro pack license bundled)

Zyxel introduces the GS1350 Series smart managed switches boasting specialized hardware and software features dedicated to surveillance deployments and applications. With a brand-new titanium grey exterior purpose-built for the surveillance sector, the Series includes four models with large power budgets of up to 375 W. In addition, the GS1350-6HP supports two 802.3bt PoE ports offering a maximum of 60 W per port to fulfill high power consumption PDs such as speed dome or PTZ IP cameras.

TECHNICKÁ SPECIFIKACE

Port Density:

*Total port count: 6

*100/1000 Mbps: 5

*Gigabit SFP: 1

*Gigabit combo (RJ-45/SFP) -

*Configurable extended range ports: 5

PoE:

*PoE ports: 5

*Total PoE budget (watt): 60

*PoE Standard: 802.3af/at ;802.3bt (port 1-2)

Performance:

*Switching capacity (Gbps): 12

*Forwarding rate (Mpps) : 8.9

*Packet buffer (byte): 525 K

*MAC address table: 8 K

Power:

*Input: 52 V - 57 V DC

*Max. power consumption (watt): 72

Physical Specifications:

*Dimensions (WxDxH)(mm): 193 x 84 x 26

*Weight (kg): 0.41

ESD/Surge Protections:

*Ethernet port surge protection: 4 KV

Standard Compliance:

*IEEE 802.3 10Base-T Ethernet

*IEEE 802.3u 100Base-Tx Ethernet

*IEEE 802.3ab 1000Base-T Ethernet

*IEEE 802.3z 1000 Base-X

*IEEE 802.3x flow control

*IEEE 802.3af PoE

*IEEE 802.3at PoE plus

*IEEE 802.3bt (GS1350-6HP)

*IEEE 802.3az EEE support / Green Ethernet

*IEEE 802.1p CoS support

Security:

*Layer 2 MAC filtering

*Static MAC forwarding

*SSH v2

*SSL

*Port isolation

*CPU protection

*SHA2 HTTPS Certification

*Login authentication by RADIUS

*RADIUS accounting

*Authorization on RADIUS

*Multiple RADIUS servers

*DHCP Snooping

IPv6 Management:

*IPv6 over Ethernet (RFC 2464)

*IPv6 addressing architecture (RFC 4291)

*Dual stack (RFC4213)

*ICMPv6 (RFC4884)

*Path MTU (RFC 1981)

*Minimum Path MTU size of 1280 (RFC 5905)

*Encapsulation for maximum PMTU size of 1500

*Neighbor Discovery (RFC4861)

Certifications:

EMC:

*CE, FCC, C-Tick, Class A

*BSMI CNS13438

Safety:

*LVD EN62368-1

*BSMI CNS14336-1

RoHS compliant

Installation Features:

*Ethernet port lightning surge protection

*Power supply lightning surge protection

*ESD(electrostatic discharge) protection

*Extended range of up to 250 meters*

*Fixed link speed at 10 Mbps

*Limited to 802.af PDs and cameras

-* Extended range excels long range installation but the actual performance may be effected by cabling quality or IP camera’s electrical design. We recommend users to test for IOP before physical deployment. Contact Zyxel for IP camera’s interoperability report.
