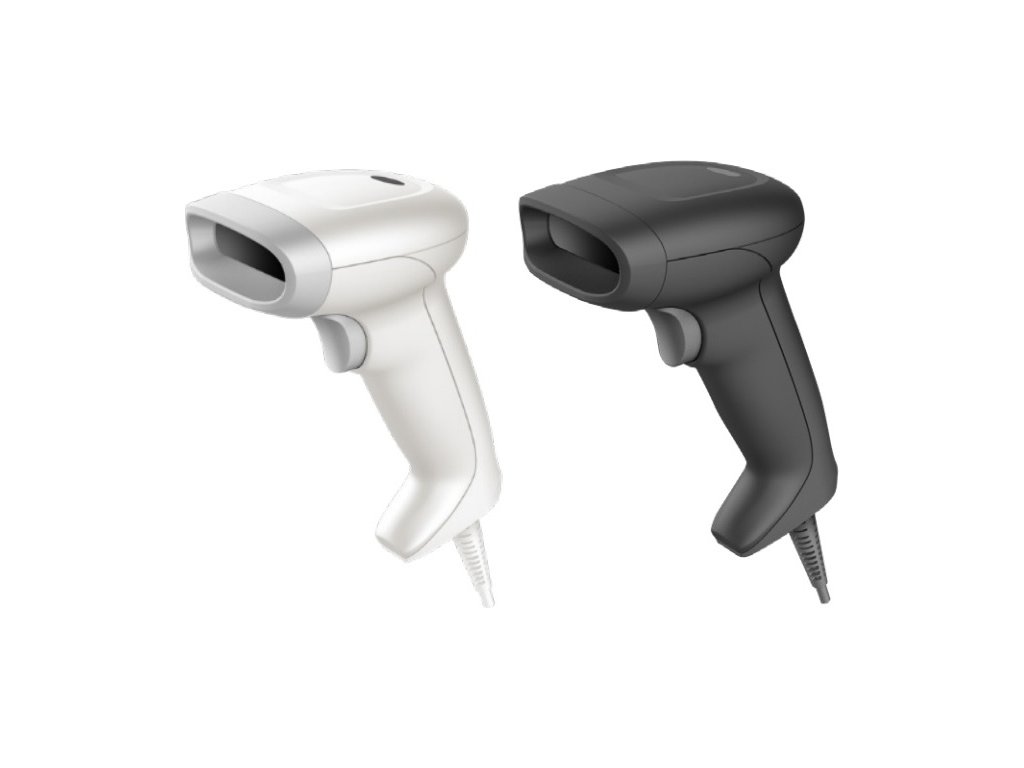

Voyager 1350g - KIT, 2D, USB, stand, white

Detailní popis produktu

Voyager 1350g je určen pro komerční účely v prostředí vyžadující vysokou rychlost 1D/2D skenování. Skener je schopen číst čárové kódy rychle a nepřetržitě, i když jsou částečně zakryté, nebo špatně vytištěné.

FEATURES AND BENEFITS

* Flexibility and Versatility

* Industry-Leading Performance

* Intelligent Software Tools

* A Full Range of Accessories

MECHANICAL/ELECTRICAL

Dimensions (L x W x H): 72.5mm×125mm×154mm (2.85 in 4.92 in 6.06 in)

Scanner Weight: 130 g (4.58 oz)

Input Voltage: 5 ± 0.5VDC

Operating Power: 2 W (400 mA @ 5V DC)

Standby Power: 0.55 W (110 mA @ 5V DC)

Host System Interfaces: USB, RS-232

ENVIRONMENTAL

Operating Temperature: 0°C to 50°C (32°F to 122°F)

Storage Temperature: -40°C to 60°C (-40°F to 140°F)

Electrostatic Discharge (ESD) (Scanners and Cradles): ±8 kV indirect coupling plane, ±15 kV direct air

Humidity: 0% to 95% relative humidity, non-condensing

Tumble Spec: 250 0.5 m (1.6 ft) tumbles (impacts)

Drop: Engineered to withstand 1.2m 2times drop to concrete

Environmental Sealing: IP40

Light Levels: 0 to 100,000 lux (9,290 foot-candles)

SCAN PERFORMANCE

Scan Pattern: Area Image (1280 x 800 pixel array)

Motion Tolerance: up to 75 cm/s for 13 mil UPC at optimal focus

Scan Angle:

*Horizontal: 48° nominal;

*Vertical: 30° nominal

Roll, Pitch, Skew: ±180°, ±60°, ±65°

Print contrast: 25%

Decode Capabilities: Reads standard 1D, PDF, 2D, and DotCode symbologies

Note: Decode capabilities dependent on configuration.

Warranty: 3-year factory warranty
