TP-Link TL-SG1016DE/ easy smart switch 16x 10/100/1000Mbps/ IGMP, QoS, VLAN/ desktop

Detailní popis produktu

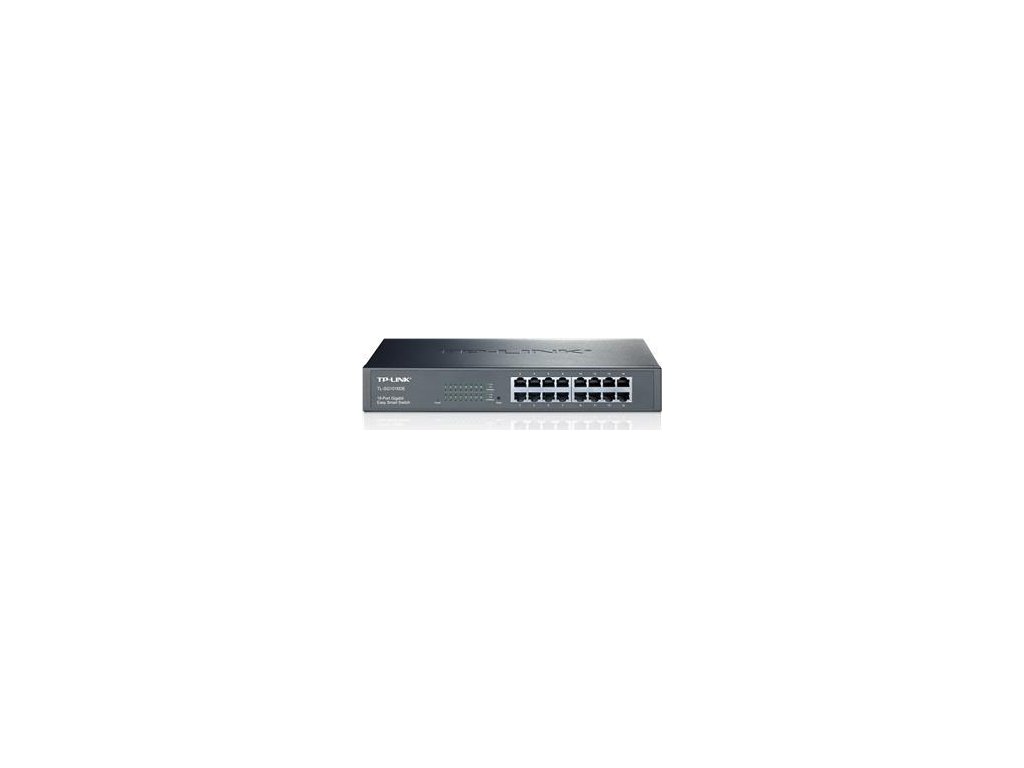

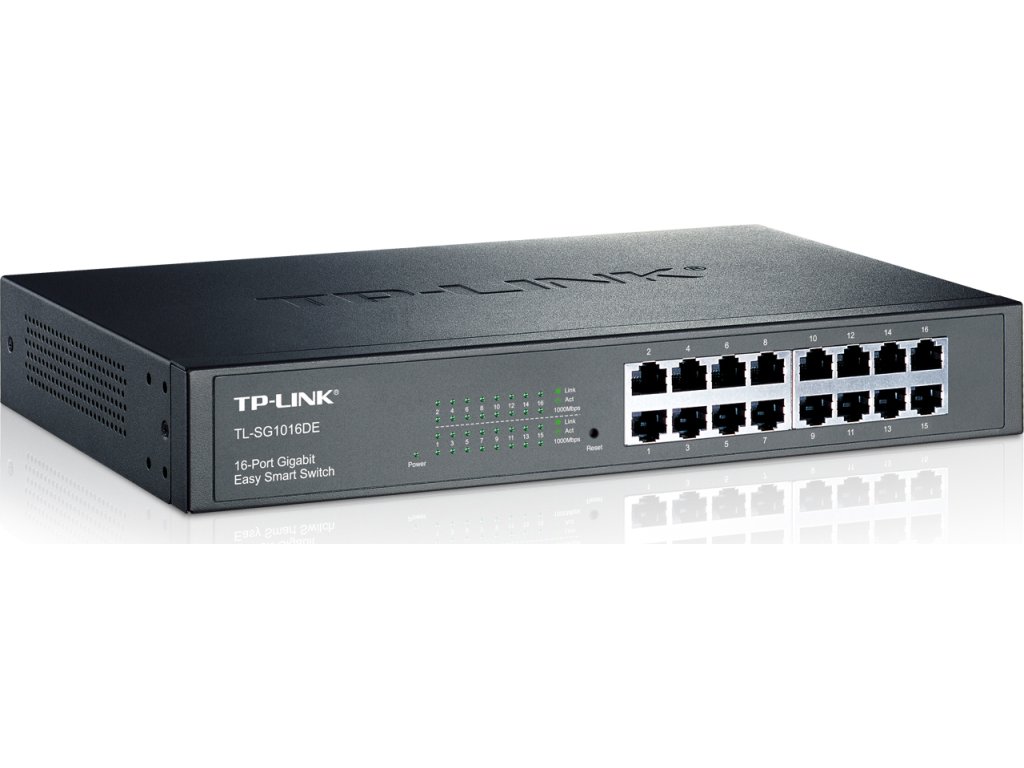

16-Port Gigabit Easy Smart Switch

TL-SG1016DE

OVERVIEW

The TL-SG1016DE 16-Port Gigabit Easy Smart switch is an ideal upgrade from an unmanaged switch, designed for Small and Medium Business networks that require simple network management. Network administrators can effectively monitor traffic via Port Mirroring, Loop Prevention and Cable Diagnostics features. To optimize traffic on your business network, TL-SG1016DE offers both port and tag based QoS to keep latency-sensitive traffic moving smoothly and jitter-free. Additionally, port-based, tag-based and MTU VLAN can improve security and meet more network segmentation requirements. Moreover, with its innovative energy-efficient technology, the TL-SG1016DE can save up to 40% of power consumption, making it an eco-friendly solution for your business network.

HARDWARE FEATURES

Standards and Protocols

• IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Interface

• 16 10/100/1000Mbps RJ45 Ports

• AUTO Negotiation/AUTO MDI/MDIX

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

• EIA/TIA-568 100? STP (maximum 100m)

• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)

• EIA/TIA-568 100? STP (maximum 100m)

• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

• EIA/TIA-568 100? STP (maximum 100m)

Dimensions (W X D X H)

• 294*180*44 mm

Fan Quantity

• Fanless

Power Supply

• 100-240VAC, 50/60Hz

PERFORMANCE

Switching Capacity

• 32Gbps

MAC Address Table

• 8K

Packet Buffer Memory

• 512KB

Packet Forwarding Rate

• 23.8Mpps

Jumbo Frame

• 10240Bytes

SOFTWARE FEATURES

Quality of Service

• Support Port Based/802.1p Based priority

• Support 4 priority queues

• Rate Limit

• Storm Control

L2 Features

• IGMP Snooping

• Link Aggregation

• Port Mirroring

• Cable Diagnostics

• Loop Prevention

VLAN

• Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)

• MTU/Port/Tag VLAN

Transmission Method

• Store-And-Forward

OTHERS

Certification

• FCC, CE

Package Contents

• TL-SG1016DE, Power Cord, Installation Guide, Resource CD, Rackmount Kit, Rubber Feet

System Requirements

• Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux.

Environment

• Operating Temperature: 0?~40?

• Storage Temperature: -40?~70?

• Operating Humidity: 10%~90% non-condensing

• Storage Humidity: 5%~90% non-condensing
