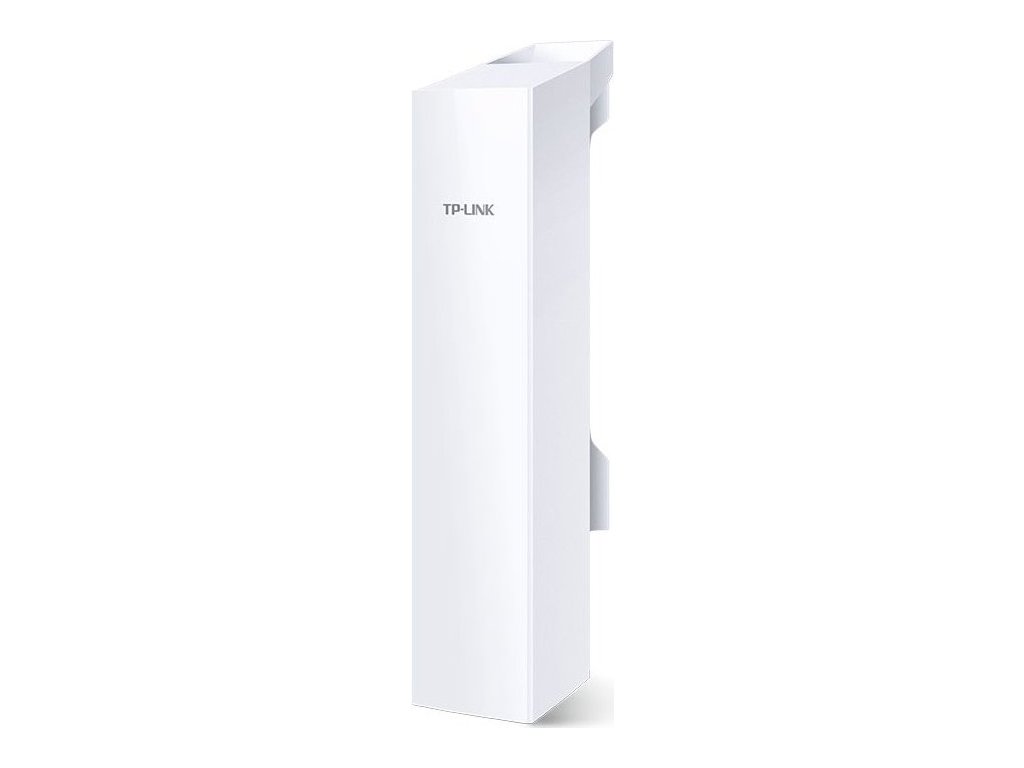

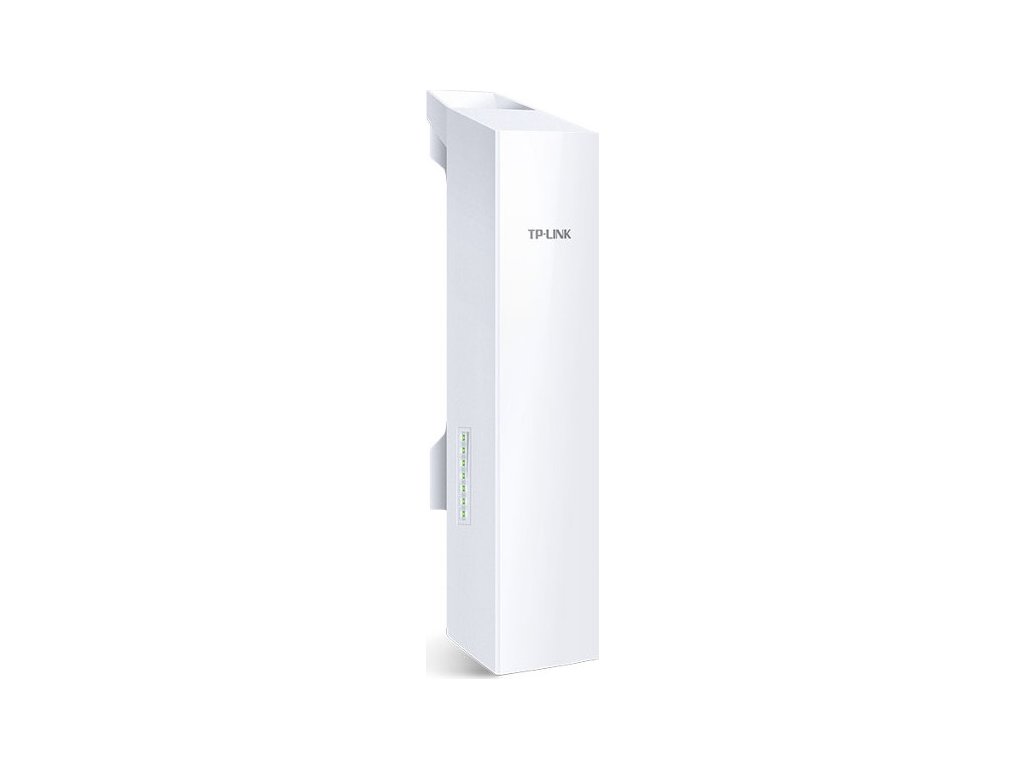

TP-Link CPE220 / Venkovní jednotka / 2.4GHz 300Mbps Wireless CPE / 802.11b/g/n / 2x 10/100Mbps LAN /

Detailní popis produktu

Venkovní CPE zařízení 2.4GHz 300Mbit/s 12dBi

CPE220

- Vestavěná 12dBi 2x2 směrová MIMO anténa s dvojitou polarizací

- Nastavitelný výkon vysílání od 0 do 30dBm/1000mWOptimalizace na úrovni systému pro více než 13km dosah bezdrátového přenosu

- Technologie TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) zlepšuje výkon zařízení co se týče propustnosti, kapacity a latence, ideální pro aplikace PTMP

- Centralizovaný sytém ovládání - řízení Pharos

- Provozní režimy AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP)

- Pasivní PoE adaptér podporuje napájení přes Ethernet až na 60 metrů a umožňuje vzdálené resetování zařízení

HARDWARE FEATURES

Processor Qualcomm Atheros 560MHz CPU, MIPS 74Kc

Memory 64MB DDR2 RAM, 8MB Flash

Interface:

- 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)

- 1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)

- 1 Grounding Terminal

- 1 Reset Button

Power Supply:

- Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)

- Voltage range: 16-27VDC

Dimensions (W X D X H) 11×3.1×2.1 inch (276×79×60 mm)

Power Consumption 10.8 Watts Max, Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.

Antenna Type:

- Built-in 12dBi 2x2 Dual-polarized Directional Antenna

- Beam Width: 60° (H-Plane) / 30° (E-Plane), Note: For more details, please refer to datasheet

Protection:

- 15KV ESD Protection

- 6KV Lightning Protection

Enclosure:

- Outdoor ASA stabilized plastic material

- IPX5 waterproof Certification

WIRELESS FEATURES

Wireless Standards IEEE 802.11b/g/n (with Pharos MAXtream disabled)

Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)

Wireless Speeds:

- Up to 300Mbps (40MHz,Dynamic)

- Up to 144.4Mbps (20MHz,Dynamic)

- Up to 72.2Mbps (10MHz,Dynamic)

- Up to 36.1Mbps (5MHz,Dynamic)

Frequency 2.4~2.483GHz, Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.

Transmission Power 30dBm/1000mw (Adjustable power by 1dBm), Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.

SOFTWARE FEATURES

Wireless Configurations:

- Pharos MAXtream TDMA Technology

- 802.11b/g/n Modes

- Selectable Channel Width: 5/10/20/40MHz

- Automatic Channel Selection

- Transmission Power Control

- Dynamic Frequency Selection (DFS)

- WDS Enable/Disable

- Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption

- SSID Broadcast Enable/Disable

- Multi-SSID with VLAN Tagging (AP mode only)

- Distance/ACK Timeout Setting

- Wireless MAC Address Filter

- Wireless Advanced:

> Beacon Interval/RTS Threshold/Fragmentation

> Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia

Management:

- Discovery and Remote Management via Pharos Control application

- HTTP/HTTPS Web-based management

- System Log

- SNMP Agent(v2c)

- Ping Watch Dog

- Dynamic DDNS

- SSH Server

System Tools:

- Wireless Signal Quality Indicators:

- Signal Strength/Noise/Transmit CCQ/CPU/Memory

- Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP

- Spectrum Analyzer

- Speed Test

- Ping

- Traceroute

System-level Optimizations:

- Optimized IGMP Snooping/Proxy for multicast applications

- Hardware watch dog

POE ADAPTER FEATURES

Interfaces:

- 1 AC Jack with Earth Ground

- 1 10/100Mbps/1000Mbps Shielded Ethernet Port (Power + Data)

- 1 10/100Mbps/1000Mbps Shielded Ethernet Port (Data)

Efficiency >80%

Button Remote Reset Button

Certifications CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

Power Status LEDs:

- 0~0.8A: Green

- 0.8A~1.0A: Red

Output 24VDC, 1.0A Max

+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)

Input Voltage 100VA~240VAC @ 50Hz~60Hz

Dimensions(W x D x H) 110×57×33.5mm

Input Current 0.8A Max @ 100VAC

Input 100-240VAC, 50/60Hz

Output Voltage 24VDC(+4,5pins; -7,8pins)

OTHERS

Certification CE, FCC, RoHS, IPX5

Package Contents:

- Outdoor Wireless CPE

- 24V 1A Passive PoE Adapter

- Pole Mounting Straps

- AC Power Cord

- Installation Guide

System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note: We recommend you to use one of following Web browsers for an improved user

experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.

Environment:

- Operating Temperature: -30 C - 70 C

- Storage Temperature: -40 C - 70 C

- Operating Humidity: 10%~90% non-condensing

- Storage Humidity: 5%~95% non-condensing
