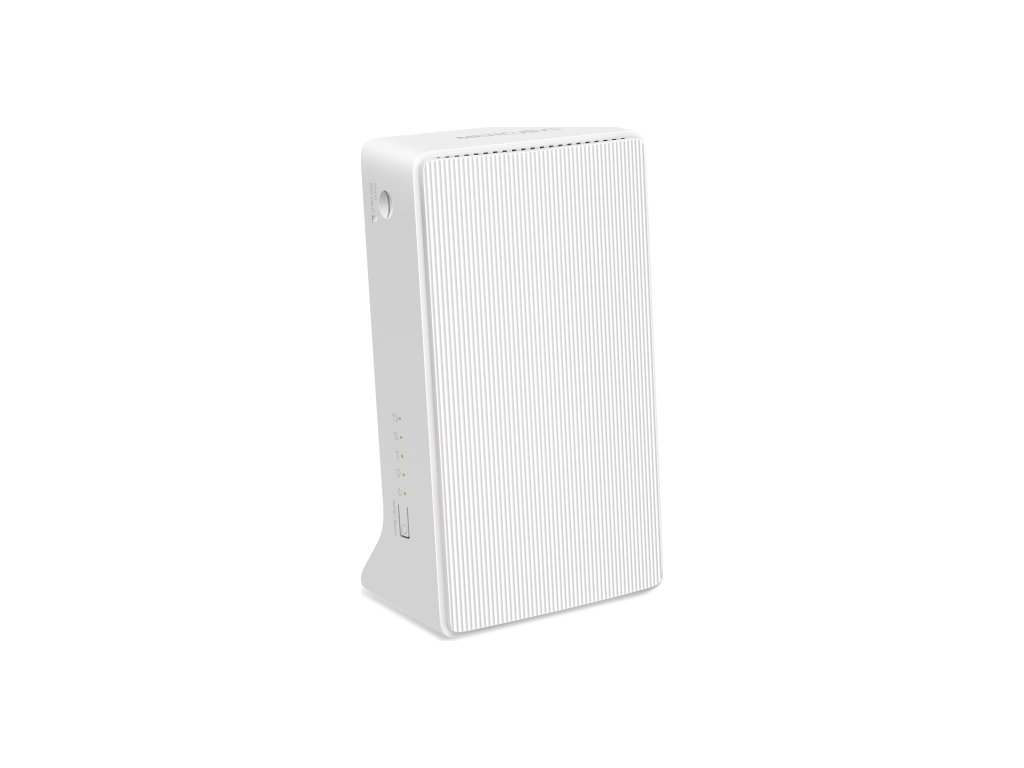

Mercusys MB130-4G AC1200 4G LTE WiFi router

Detailní popis produktu

Mercusys MB130-4G

AC1200 Wireless Dual Band 4G LTE Router

Functions

4G network

*Enjoy the 4G LTE download speeds up to 150 Mbps.

Plug a SIM card and play

*No configurations needed, compatibility of SIM cards are assured by years of field tests.

Dual Band 1200 Mbps WiFi

*Fast WiFi speeds up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band.

Simultaneous Connection

*Share internet access with up to 32 Wi-Fi devices.

External Antennas Ports

*Plug in your 4G/3G Antennas to enhance the Network Signal.

Wi-Fi router mode

*Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection.

Specifications

Wireless

Wireless Standards

*IEEE 802.11ac/a/b/g/n

Frequency

*5 GHz, 2.4 GHz

WiFi Speeds

*867 Mbps at 5 GHz

*300 Mbps at 2.4 GHz

Reception Sensitivity

*11g 6Mbps: -95dBm

*11g 54Mbps: -77dBm

*11n HT20 MCS7: -74dBm

*11n HT40 MCS7: -71dBm

*11a 6Mbps: -92dBm

*11a 54Mbps: -75dBm

*11ac VHT20 MCS8: -70dBm

*11ac VHT40 MCS9: -65dBm

*11ac VHT80 MCS9: -61dBm

Transmission Power

*2.4 GHz < 20dBm (EIRP)

*5 GHz < 23dBm (EIRP)

Wireless Security

*WPA-PSK / WPA2-PSK

Wireless Functions

*Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless, Statistics

Hardware

Dimensions

*95×61.05×165.97 mm

Interfaces

*1× 10/100Mbps LAN/WAN Port

*1× 10/100Mbps LAN Port

*2× 4G/3G External Antenna Ports

*1× Nano SIM Card Slot

Button

*WPS/Reset Button

Ethernet Ports

*1× 10/100 Mbps LAN/WAN Port + 1× 10/100 Mbps LAN

Network Type

*EU:

*FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)

*TDD-LTE: B38/B40 (2600/2300 MHz)

*HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)

Software

DHCP

*Server
