DELL U3824DW UltraSharp/ 38" WLED curved/ 21:9/ 3840x1600/ 2000:1/ 5ms/ IPS/ 2xHDMI/ USB-C/ DP/ 5x USB/ RJ-45/ 3Y Basic

Detailní popis produktu

UltraSharp 38 Curved USB-C Hub Monitor – U3824DW

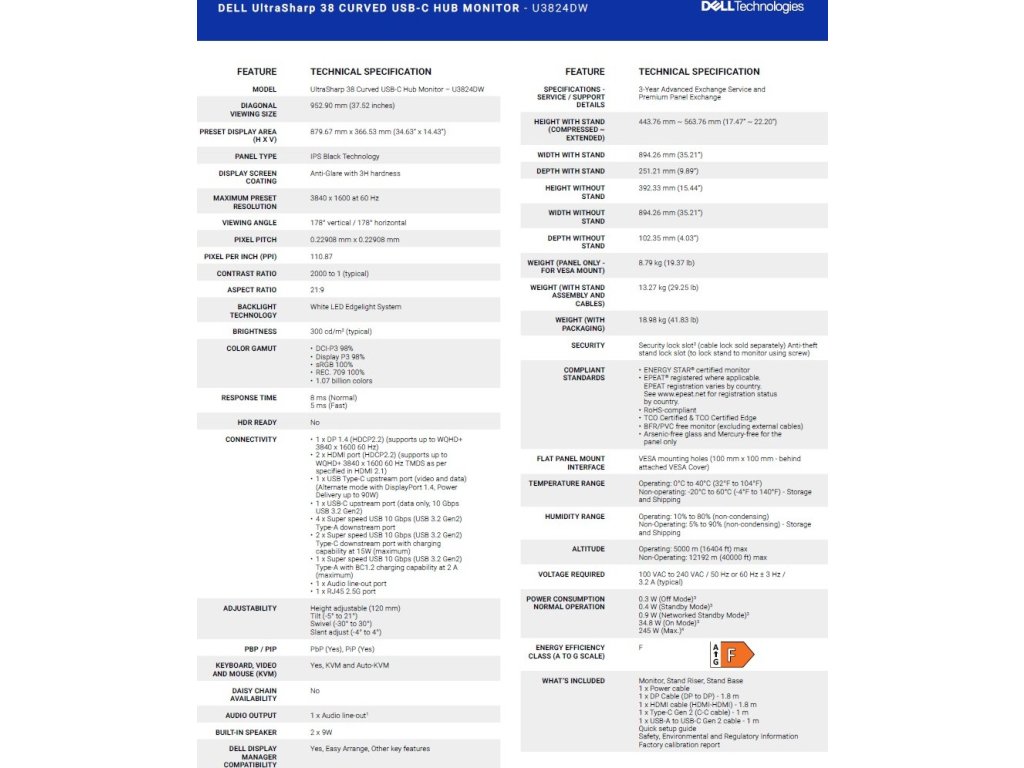

TECHNICAL SPECIFICATION:

DIAGONAL VIEWING SIZE: 952.90 mm (37.52 inches)

PRESET DISPLAY AREA (H X V): 879.67 mm x 366.53 mm (34.63” x 14.43”)

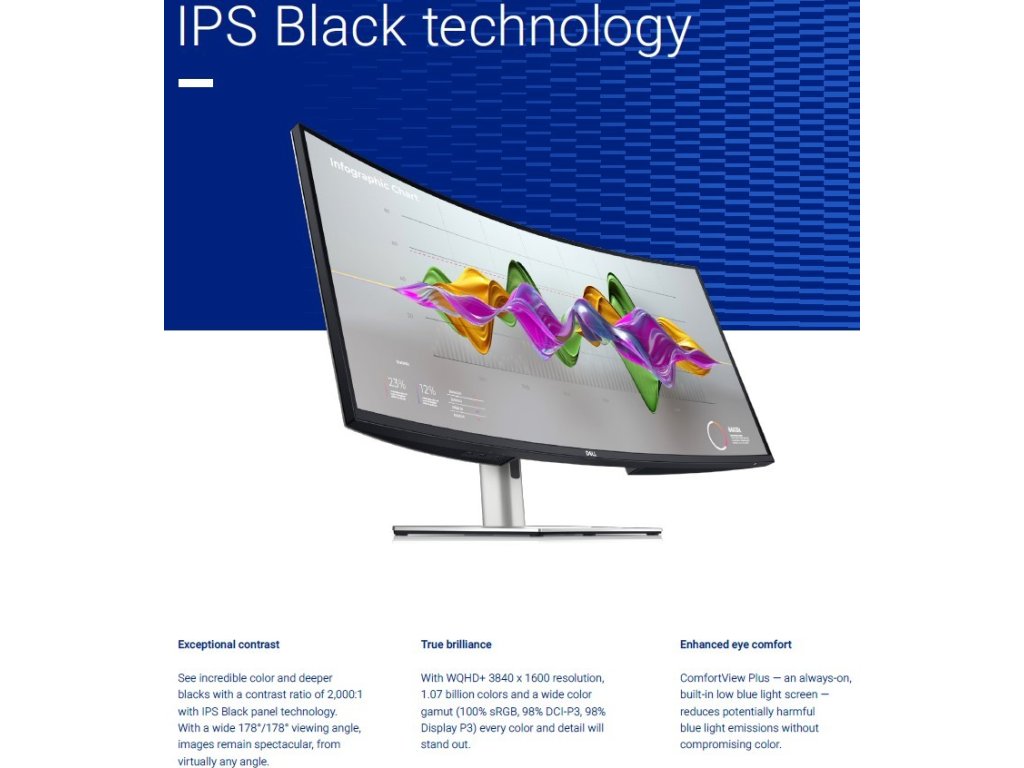

PANEL TYPE: IPS Black Technology

DISPLAY SCREEN COATING: Anti-Glare with 3H hardness

MAXIMUM PRESET RESOLUTION: 3840 x 1600 at 60 Hz

VIEWING ANGLE: 178° vertical / 178° horizontal

PIXEL PITCH: 0.22908 mm x 0.22908 mm

PIXEL PER INCH (PPI): 110.87

CONTRAST RATIO: 2000 to 1 (typical)

ASPECT RATIO: 21:9

BACKLIGHT TECHNOLOGY: White LED Edgelight System

BRIGHTNESS: 300 cd/m2 (typical)

TCO Certified: Yes

COLOR GAMUT:

• DCI-P3 98%

• Display P3 98%

• sRGB 100%

• REC. 709 100%

• 1.07 billion colors

RESPONSE TIME: 8 ms (Normal), 5 ms (Fast)

HDR READY: No

CONNECTIVITY:

• 1 x DP 1.4 (HDCP2.2) (supports up to WQHD+ 3840 x 1600 60 Hz)

• 2 x HDMI port (HDCP2.2) (supports up to WQHD+ 3840 x 1600 60 Hz TMDS as per specified in HDMI 2.1)

• 1 x USB Type-C upstream port (video and data) (Alternate mode with DisplayPort 1.4, Power Delivery up to 90W)

• 1 x USB-C upstream port (data only, 10 Gbps USB 3.2 Gen2)

• 4 x Super speed USB 10 Gbps (USB 3.2 Gen2) Type-A downstream port

• 2 x Super speed USB 10 Gbps (USB 3.2 Gen2) Type-C downstream port with charging capability at 15W (maximum)

• 1 x Super speed USB 10 Gbps (USB 3.2 Gen2) Type-A with BC1.2 charging capability at 2 A (maximum)

• 1 x Audio line-out port

• 1 x RJ45 2.5G port

ADJUSTABILITY: Height adjustable (120 mm), Tilt (-5° to 21°), Swivel (-30° to 30°), Slant adjust (-4° to 4°)

PBP/PIP: PbP (Yes), PiP (Yes)

KEYBOARD, VIDEO AND MOUSE (KVM): Yes, KVM and Auto-KVM

DAISY CHAIN AVAILABILITY: No

AUDIO OUTPUT: 1 x Audio line-out

BUILT-IN SPEAKER: 2 x 9W

DELL DISPLAY MANAGER: Yes, Easy Arrange, Other key features

SPECIFICATIONS - SERVICE / SUPPORT DETAILS: 3-Year Advanced Exchange Service and Premium Panel Exchange

HEIGHT WITH STAND (COMPRESSED ~ EXTENDED): 443.76 mm ~ 563.76 mm (17.47” ~ 22.20”)

WIDTH WITH STAND: 894.26 mm (35.21”)

DEPTH WITH STAND: 251.21 mm (9.89”)

HEIGHT WITHOUT STAND: 392.33 mm (15.44”)

WIDTH WITHOUT STAND: 894.26 mm (35.21”)

DEPTH WITHOUT STAND: 102.35 mm (4.03”)

WEIGHT (PANEL ONLY - FOR VESA MOUNT): 8.79 kg (19.37 lb)

WEIGHT (WITH STAND ASSEMBLY AND CABLES): 13.27 kg (29.25 lb)

WEIGHT (WITH PACKAGING): 18.98 kg (41.83 lb)

SECURITY: Security lock slot2 (cable lock sold separately) Anti-theft stand lock slot (to lock stand to monitor using screw)

COMPLIANT STANDARDS:

ENERGY STAR® certified monitor

EPEAT® registered where applicable.

EPEAT registration varies by country

RoHS-compliant

TCO Certified & TCO Certified Edge

BFR/PVC free monitor (excluding external cables)

Arsenic-free glass and Mercury-free for the panel only

FLAT PANEL MOUNT INTERFACEVESA mounting holes (100 mm x 100 mm - behind attached VESA Cover)

FWHAT’S INCLUDED:

Monitor, Stand Riser, Stand Base

1x Power cable1 x DP Cable (DP to DP) - 1.8 m

1x HDMI cable (HDMI-HDMI) - 1.8 m

1x Type-C Gen 2 (C-C cable) - 1 m

1x USB-A to USB-C Gen 2 cable - 1 m

Quick setup guide

Safety, Environmental and Regulatory Information

Factory calibration report
