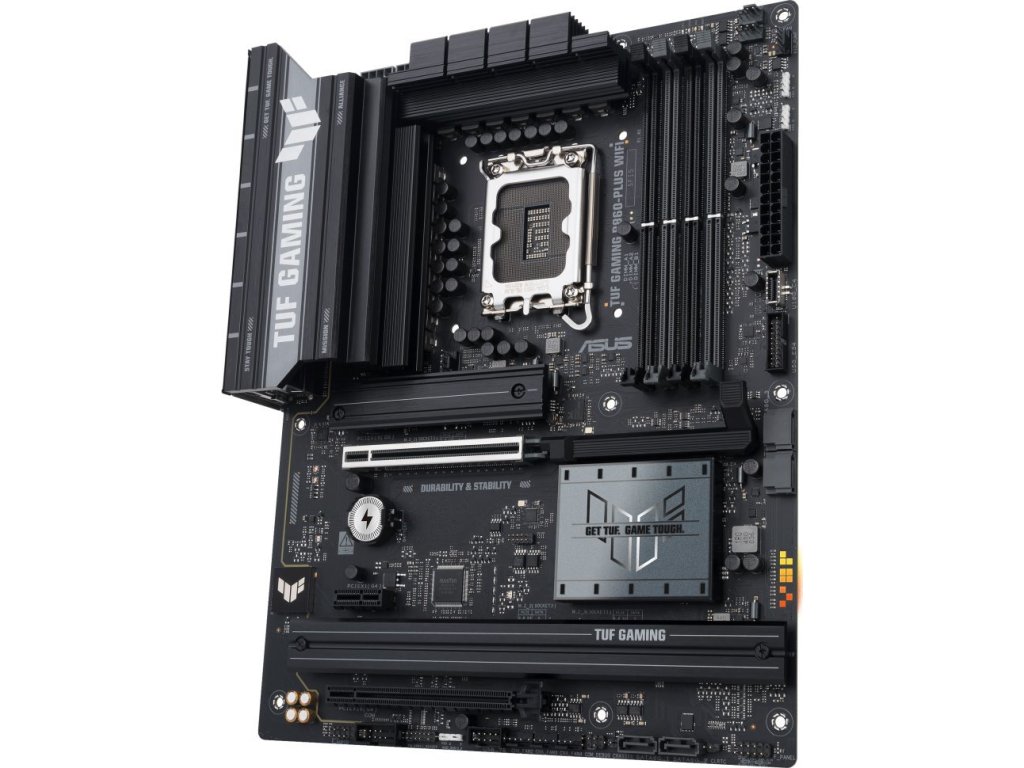

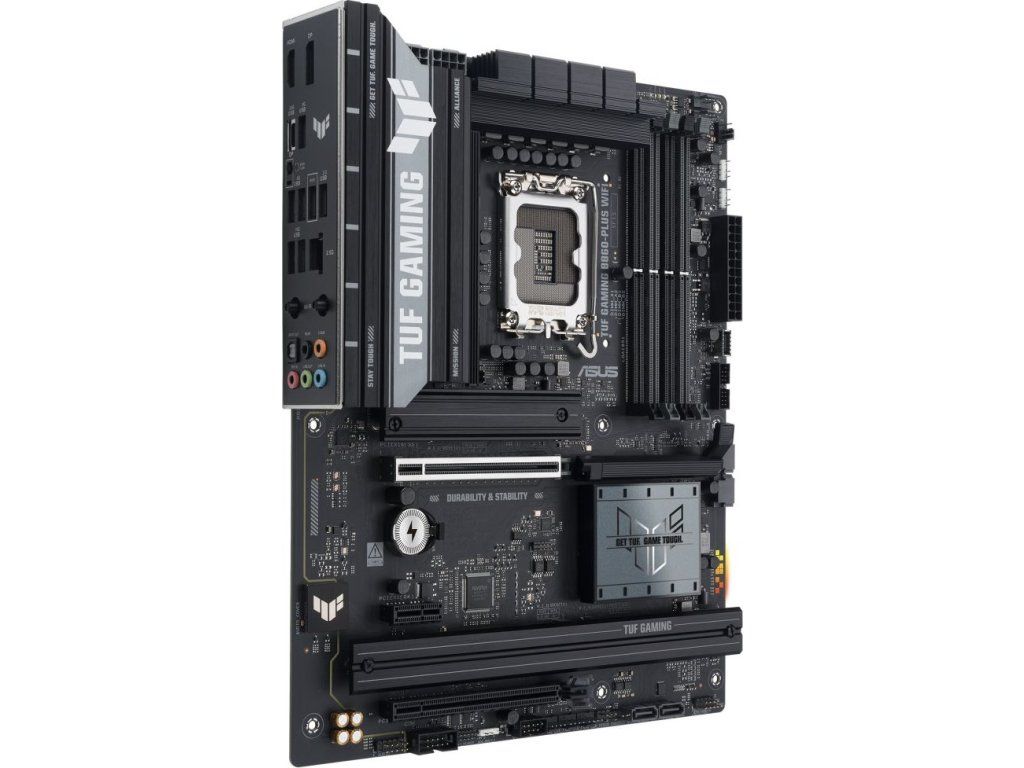

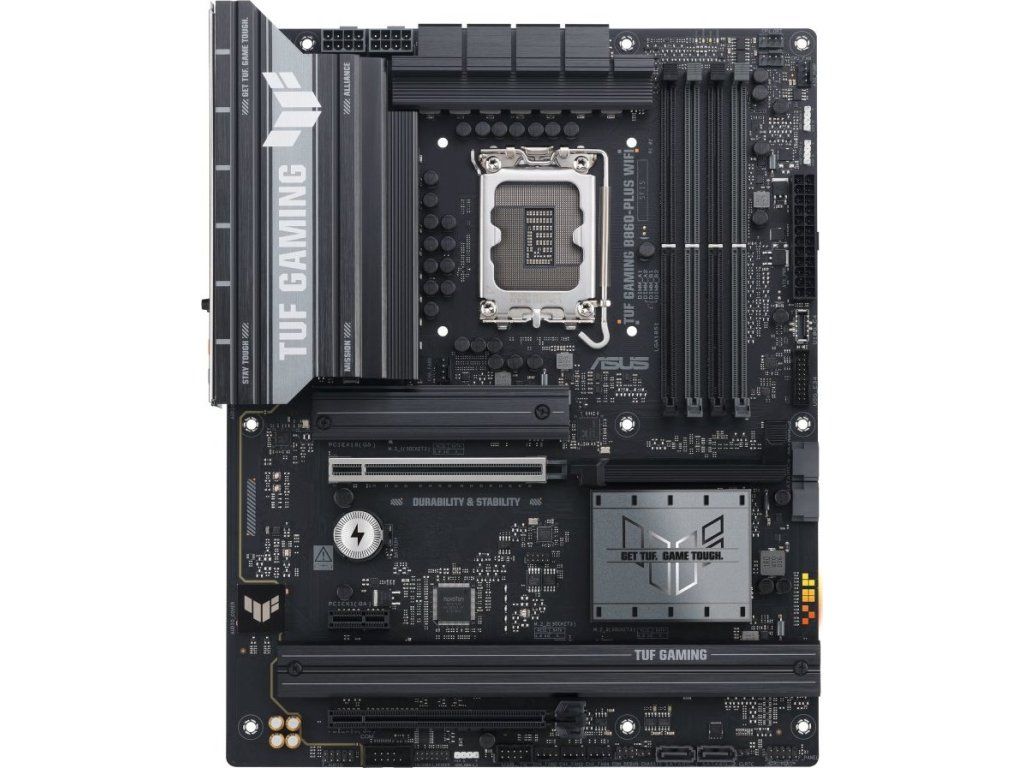

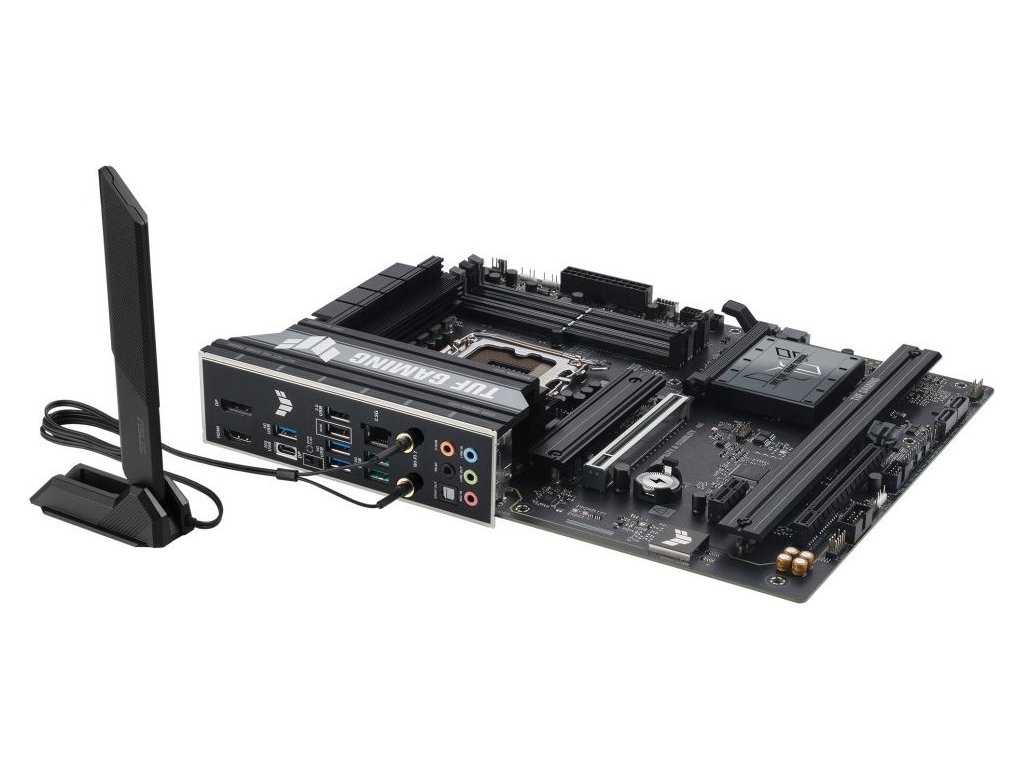

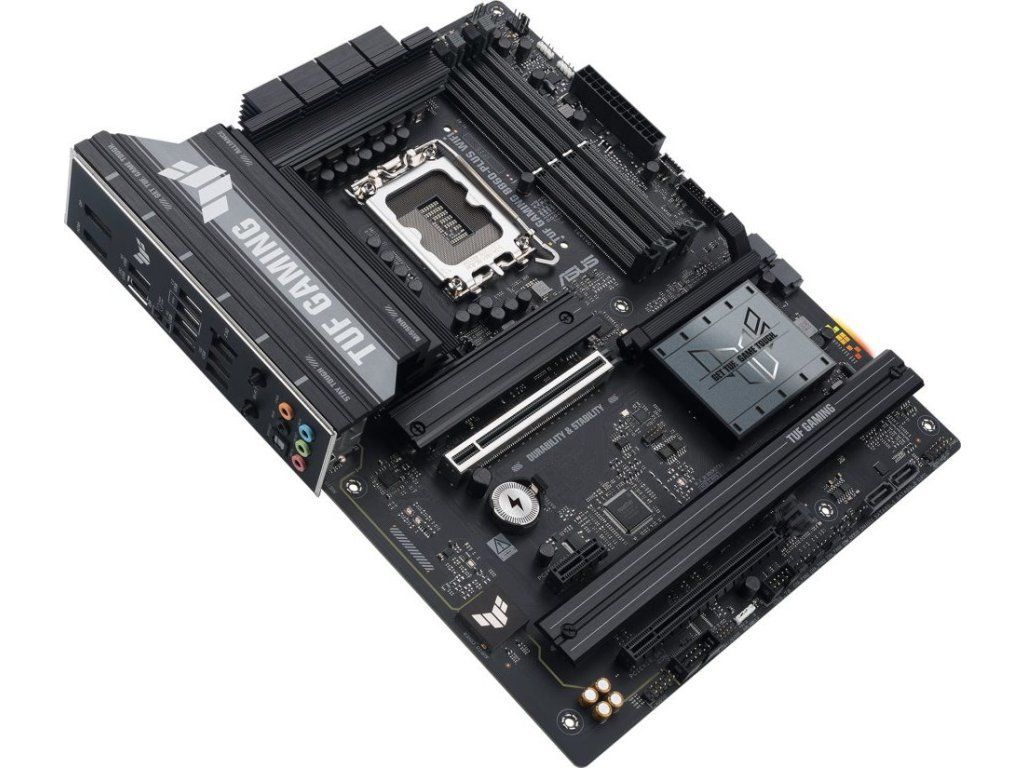

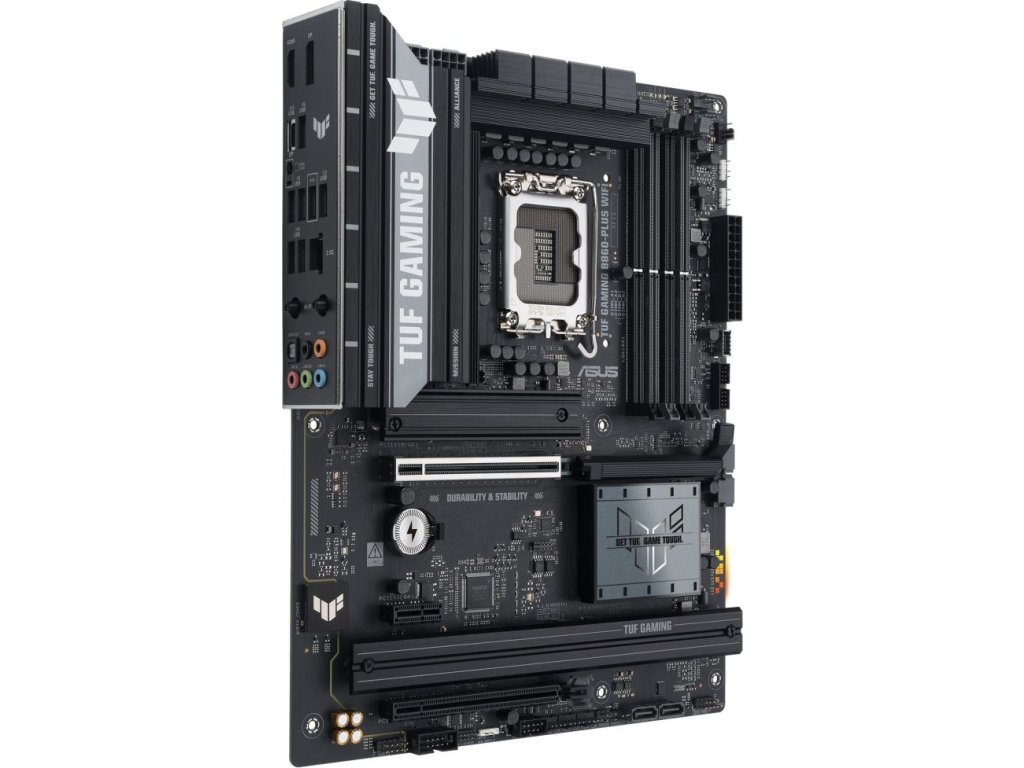

ASUS TUF GAMING B860-PLUS WIFI / B860 / LGA1851 / DDR5 / DP / HDMI / USB-C / 3x M.2 / WiFi / ATX

Detailní popis produktu

ASUS TUF GAMING B860-PLUS WIFI

* ATX Form Factor

CPU: Support Intel® Core™ Ultra Processors(Series 2)- LGA1851, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset: Intel® B860 Chipset

Paměť: 4 x sloty DIMM, max. 192 GB, DDR5 - Podpora až 8666+ MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)

Grafické porty:

*1 x DisplayPort

*1 x HDMI™ port

*1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output

Rozšiřující sloty:

Intel® Core™ Ultra Processors(Series 2)

*1 x PCIe 5.0 x16 slot

Intel® B860 Chipset

*1 x PCIe 4.0 x16 slot (supports x4 mode)

*1 x PCIe 4.0 x1 slot*

Úložný prostor:

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

Intel® Core™ Ultra Processors(Series 2)

*M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)

Intel® B860 Chipset

*M.2_2 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)

*M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

*4 x SATA 6Gb/s ports

Ethernet:

*1 x Realtek 2.5Gb Ethernet

*TUF LANGuard

Připojení a Bluetooth:

*Wi-Fi 7

*2x2 Wi-Fi 7 (802.11be)

*Supports 2.4/5/6GHz frequency band

*Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.

*Bluetooth® v5.4

USB:

Zadní USB (Total 7 ports)

*1 x USB 20Gbps port (1 x USB Type-C®)

*2 x USB 10Gbps ports (2 x Type-A)

*3 x USB 5Gbps ports (3 x Type-A)

*2 x USB 2.0 ports (2 x Type-A)

Přední USB (Total 7 ports)

*1 x USB USB 10Gbps connector (supports USB Type-C®)

*1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

*1 x USB 2.0 header supports 2 additional USB 2.0 ports

*USB Type-C® power delivery output: max. 5V/3A

Audio:

*Realtek 7.1 Surround Sound High Definition Audio CODEC

Audio Features

*Audio Shielding

*Rear optical S/PDIF out port

*Premium audio capacitors

*Dedicated audio PCB layers

*Audio cover

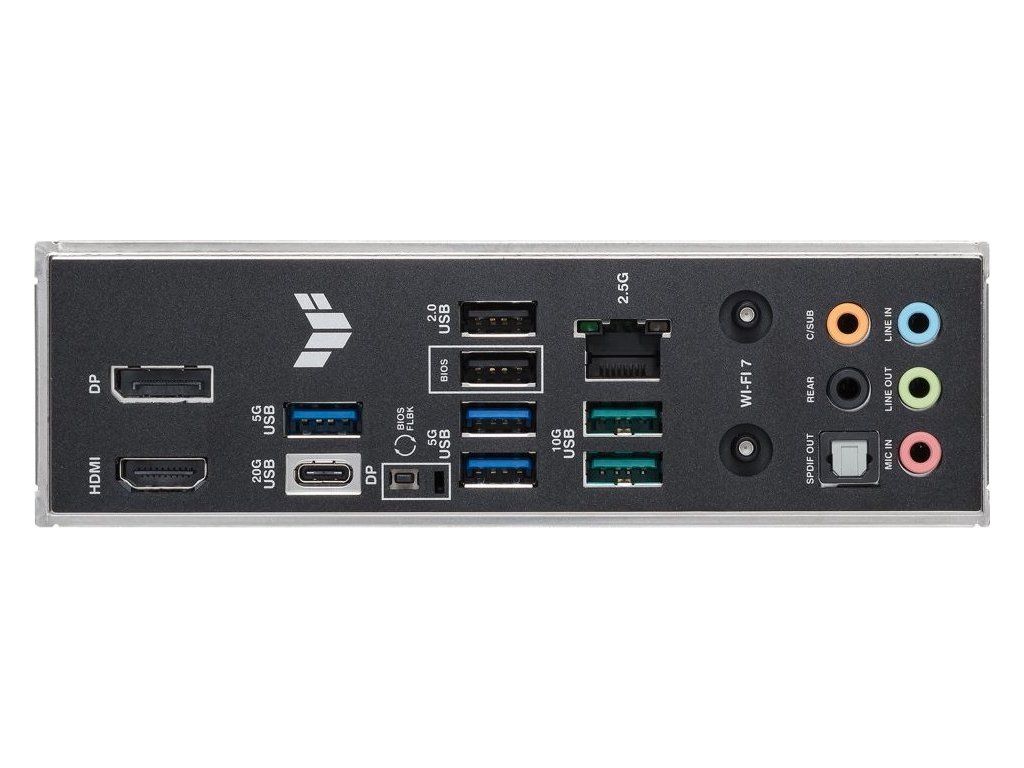

Vstupy/výstupy zadního panelu:

*1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)

*2 x USB 10Gbps ports (2 x USB Type-A)

*3 x USB 5Gbps ports (3 x Type-A)

*2 x USB 2.0 ports (2 x Type-A)

*1 x DisplayPort

*1 x HDMI™ port

*1 x Wi-Fi module

*1 x Realtek 2.5Gb Ethernet port

*5 x Audio jacks

*1 x Optical S/PDIF out port

*1 x BIOS FlashBack™ button

Interní vstupy/výstupy:

Ventilátory a chlazení:

*1 x 4-pin CPU Fan header

*1 x 4-pin CPU OPT Fan header

*1 x 4-pin AIO Pump header

*4 x 4-pin Chassis Fan headers

Napájení:

*1 x 24-pin Main Power connector

*2 x 8-pin +12V CPU Power connectors

Úložiště:

*3 x M.2 slots (Key M)

*4 x SATA 6Gb/s ports

USB:

*1 x USB 10Gbps connector (supports USB Type-C® )

*1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

*1 x USB 2.0 header supports 2 additional USB 2.0 ports

Různé:

*3 x Addressable Gen 2 headers

*1 x Clear CMOS header

*1 x Chassis Intrusion header

*1 x COM Port header

*1 x Front Panel Audio header (F_AUDIO)

*1 x 10-1 pin Front System Panel header

*1 x Thunderbolt™ (USB4®) header

Příslušenství:

Kabely:

*2 x SATA 6Gb/s cables

Různé:

*1 x ASUS WiFi Q-Antenna

*2 x M.2 rubber packages

*1 x Screw package for M.2 SSD

*1 x TUF GAMING sticker

Dokumenty:

*1 x Quick start guide
