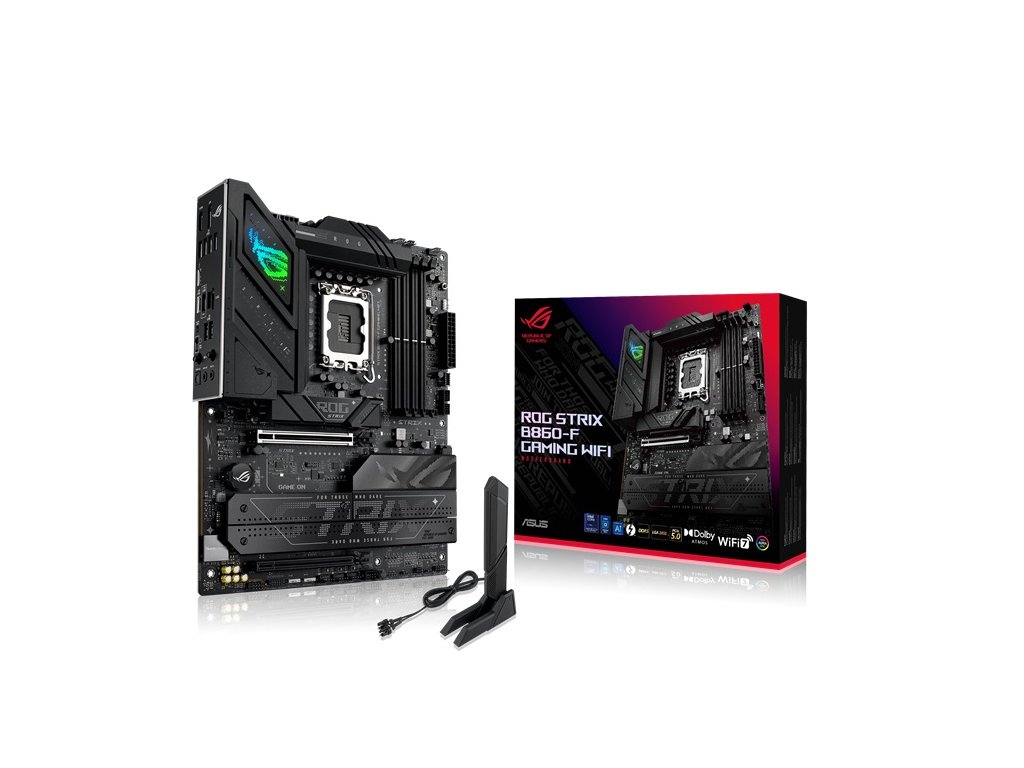

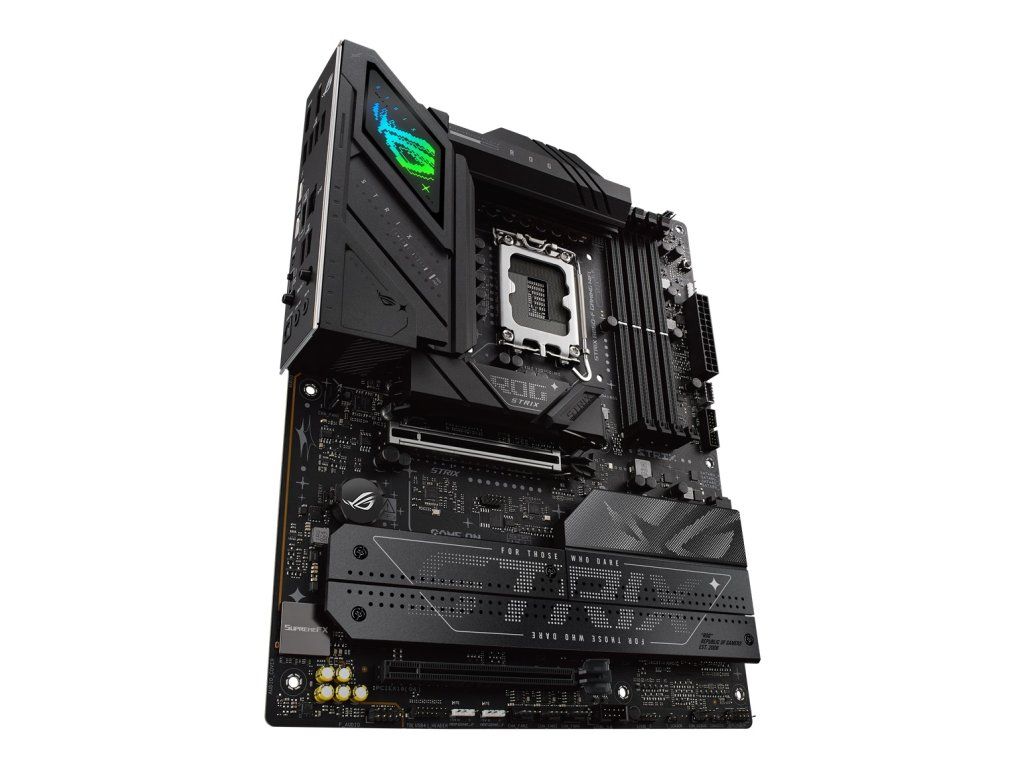

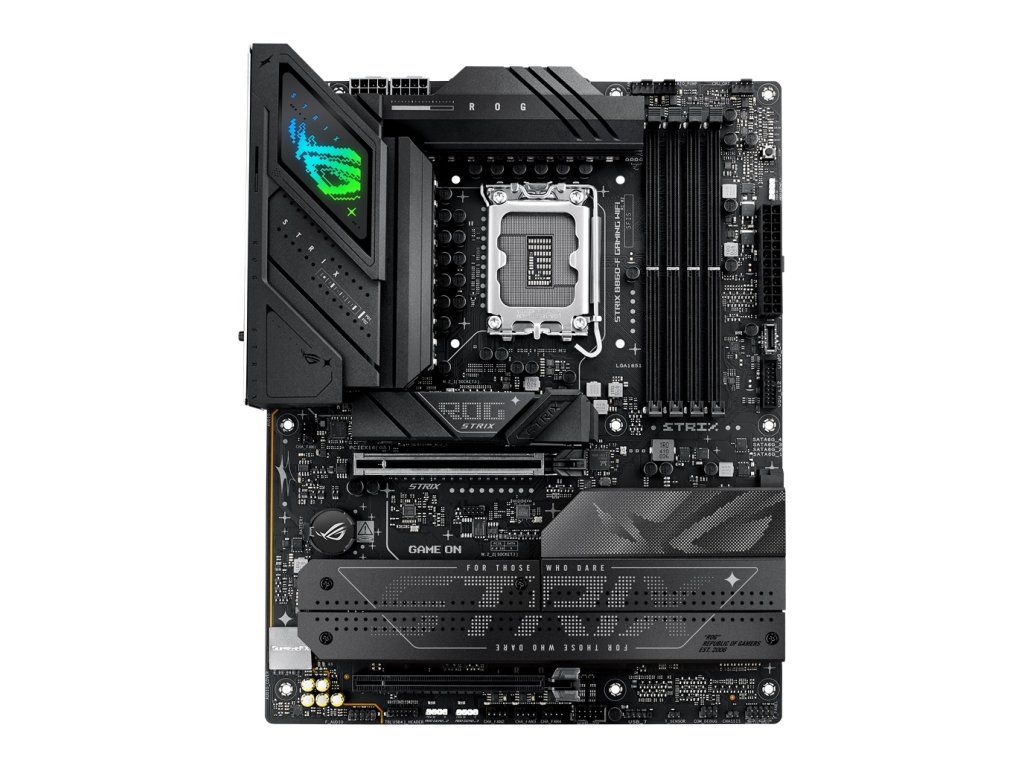

ASUS ROG STRIX B860-F GAMING WIFI

Detailní popis produktu

ASUS ROG STRIX B860-F GAMING WIFI

* ATX Form Factor

CPU: Intel® Socket LGA1851 for Intel® Core™ Ultra Processors(Series 2), Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

Chipset: Intel® B860 Chipset

Paměť: 4 x sloty DIMM, max. 192 GB, DDR5 - Podpora až 9066MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)

*Dvoukanálová paměťová architektura

*Podpora paměťového modulu Intel® Extreme Memory Profile (XMP)

*Osazení DIMM

Grafické porty:

*1 x DisplayPort

*1 x HDMI™ port

*1 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs

Rozšiřující sloty:

Intel® Core™ Ultra Processors(Series 2)

*1 x PCIe 5.0 x16 slot (supports x16)

Intel® B860 Chipset

*1 x PCIe 4.0 x16 slot (supports x4 mode)

Úložný prostor:

Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports

Intel® Core™ Ultra Processors(Series 2)

*M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

Intel® B860 Chipset

*M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

*M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)

*M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

*4 x SATA 6Gb/s ports

Ethernet:

*1 x Intel® 2.5Gb Ethernet

*ASUS LANGuard

Připojení a Bluetooth:

*Wi-Fi 7

*2x2 Wi-Fi 7 (802.11be)

*Supports 2.4/5/6GHz frequency band

*Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.

*Bluetooth® v5.4

USB:

Zadní USB (Total 7 ports)

*1 x Thunderbolt™ 4 port (1 x USB Type-C®)

*1 x USB 20Gbps port (1 x USB Type-C®)

*1 x USB 10Gbps ports (1 x Type-A)

*6 x USB 5Gbps ports (6 x Type-A)

Přední USB (Total 7 ports)

*1 x USB 10Gbps (1 x USB Type-C®)

*1 x USB 5Gbps header support 2 additional USB 5Gbps ports

*2 x USB 2.0 headers support 3 additional USB 2.0 ports

Audio:

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

*SupremeFX Shielding Technology

*Savitech SV3H712 AMP

*Rear optical S/PDIF out port

*Premium audio capacitors

*Audio cover

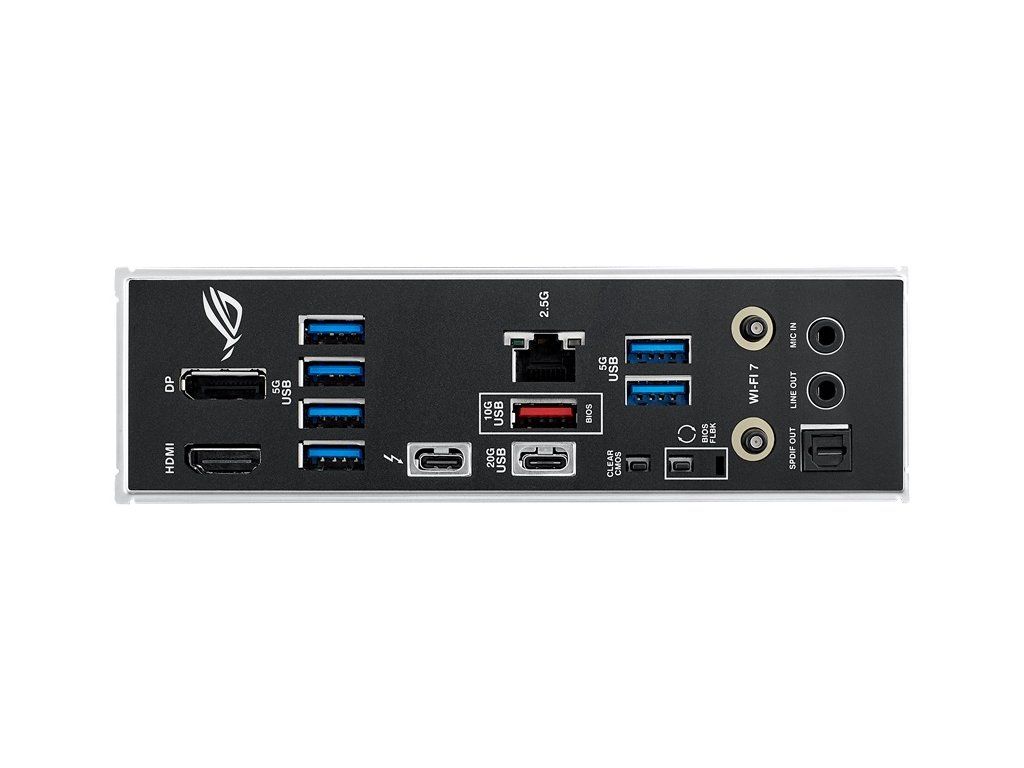

Vstupy/výstupy zadního panelu:

*1 x Thunderbolt™ 4 (1 x USB Type-C®)

*1 x USB 20Gbps port (1 x USB Type-C®)

*1 x USB 10Gbps port (1 x Type-A)

*6 x USB 5Gbps ports (6 x Type-A)

*1 x DisplayPort

*1 x HDMI™ port

*1 x Wi-Fi module

*1 x Intel® 2.5Gb Ethernet port

*2 x audio jacks

*1 x Optical S/PDIF out port

*1 x BIOS FlashBack™ button

*1 x Clear CMOS button

Interní vstupy/výstupy:

Ventilátory a chlazení:

*1 x 4-pin CPU Fan header

*1 x 4-pin CPU OPT Fan header

*1 x 4-pin AIO Pump header

*4 x 4-pin Chassis Fan headers

Napájení:

*1 x 24-pin Main Power connector

*2 x 8-pin +12V CPU Power connectors

Úložiště:

*4 x M.2 slots (Key M)

*4 x SATA 6Gb/s ports

USB:

*1 x USB 10Gbps connector (supports USB Type-C® )

*1 x USB 5Gbps header support 2 additional USB 5Gbps ports

*2 x USB 2.0 headers support 3 additional USB 2.0 ports

Různé:

*3 x Addressable Gen2 headers

*1 x Chassis Intrusion header

*1 x Front Panel Audio header (F_AUDIO)

*1 x Start button

*1 x 10-1 pin Front System Panel header

*1 x Thermal Sensor header

*1 x Thunderbolt™ (USB4®) header

Příslušenství:

Kabely:

*2 x SATA 6Gb/s cables

Různé:

*1 x ASUS WiFi Q-Antenna

*1 x Cable ties package

*1 x M.2 Q-Latch package

*1 x M.2 Q-Slide package

*1 x ROG key chain

*1 x ROG Strix stickers

*4 x M.2 rubbers

Dokumenty:

*1 x Quick start guide
