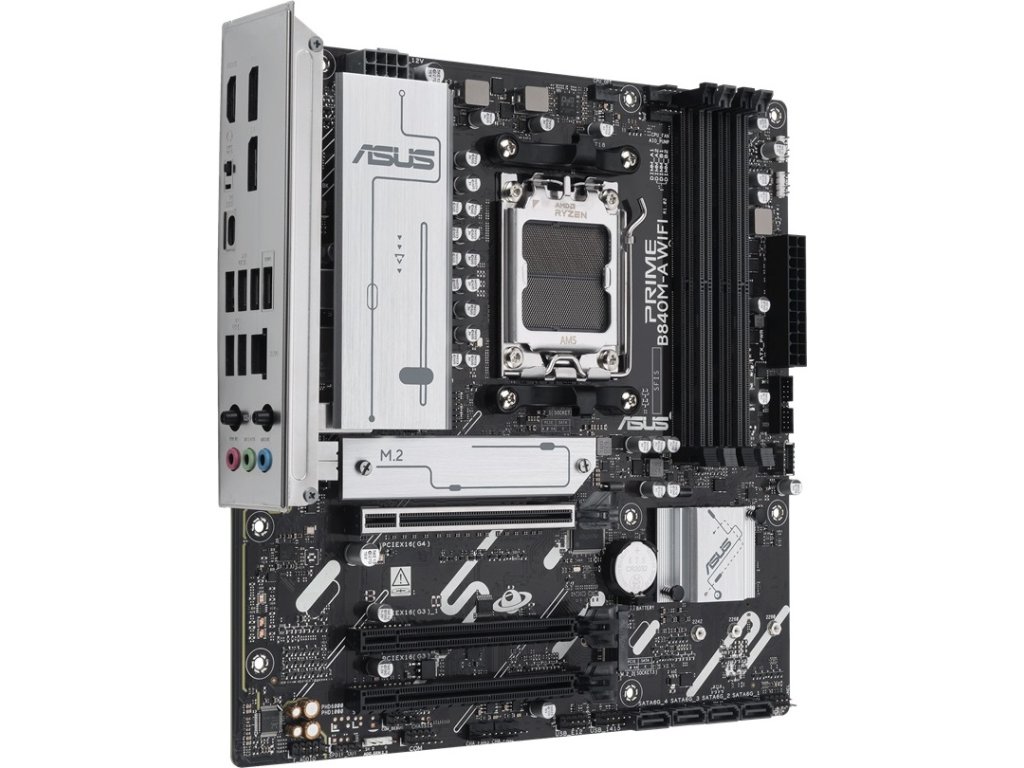

ASUS PRIME B840M-A WIFI

Detailní popis produktu

ASUS PRIME B840-PLUS WIFI

* mATX Form Factor

CPU: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Chipset: AMD B840 Chipset

Paměť: "4 x DIMM slots, max. 192GB, DDR5 - Podpora až 7600+MT/s (OC) s procesory Ryzen™ řady 9000 a 8000 a 7000, ECC a Non-ECC, nevyrovnávací paměti DIMM

*Dvoukanálová paměťová architektura

*Podpora rozšířených profilů AMD pro přetaktování (EXPO™)

*ASUS Enhanced Memory Profile (AEMP)

Grafické porty:

*2 x DisplayPort

*1 x HDMI™ port

Rozšiřující sloty:

AMD Ryzen™ 9000 & 7000 Series Desktop Processors

*1 x PCIe 4.0 x16 slot (supports x16 mode)

AMD Ryzen™ 8000 Series Desktop Processors

*1 x PCIe 4.0 x16 slot (supports x8/x4 mode)

AMD B840 Chipset

*2 x PCIe 3.0 x16 slots (support x1 mode)

Úložný prostor:

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

*M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

*M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

AMD B840 Chipset

*M.2_3 slot (Key M), type 2280 (supports PCIe 3.0 x4 mode)

*4 x SATA 6Gb/s ports

Ethernet:

*1 x Realtek 2.5Gb Ethernet

*ASUS LANGuard

Připojení a Bluetooth:

*Wi-Fi 6E

*2x2 Wi-Fi 6E (802.11ax)

*Supports 2.4/5/6GHz frequency band

*Bluetooth® v5.3

USB:

Zadní USB (Total 7 ports)

*2 x USB 10Gbps ports (2 x Type-A)

*1 x USB 5Gbps port (1 x USB Type-C®)

*4 x USB 2.0 ports (4 x Type-A)

Přední USB (Total 7 ports)

*1 x USB 5Gbps connector (supports USB Type-C®)

*1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

*2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC

*Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

*Supports up to 24-Bit/192 kHz playback

Audio Features

*Audio Shielding

*Premium audio capacitors

*Dedicated audio PCB layers

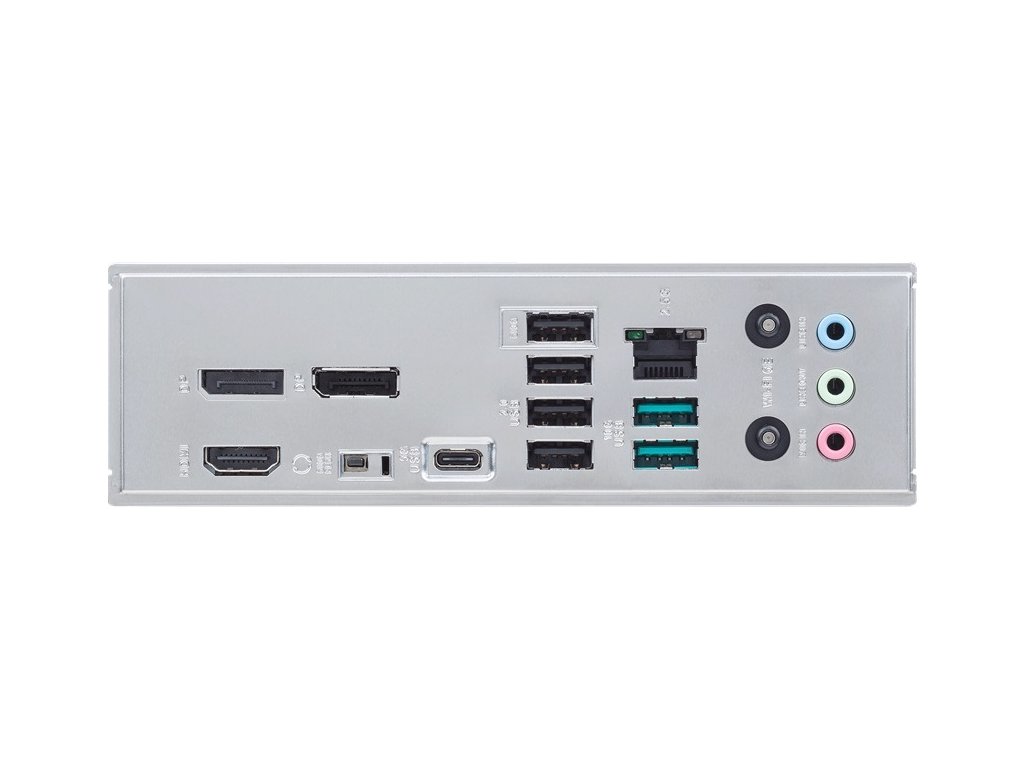

Vstupy/výstupy zadního panelu:

*2 x USB 10Gbps ports (2 x Type-A)

*1 x USB 5Gbps port (1 x USB Type-C®)

*4 x USB 2.0 ports (4 x Type-A)

*2 x DisplayPort

*1 x HDMI™ port

*1 x Wi-Fi module

*1 x Realtek 2.5Gb Ethernet port

*3 x Audio jacks

*1 x BIOS FlashBack™ button

Interní vstupy/výstupy:

Ventilátory a chlazení:

*1 x 4-pin CPU Fan header

*1 x 4-pin CPU OPT Fan header

*1 x 4-pin AIO Pump header

*3 x 4-pin Chassis Fan headers

Napájení:

*1 x 24-pin Main Power connector

*1 x 8-pin +12V CPU Power connector

Úložiště:

*3 x M.2 slots (Key M)

*4 x SATA 6Gb/s ports

USB:

*1 x USB 5Gbps connector (supports USB Type-C® )

*1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

*2 x USB 2.0 headers support 4 additional USB 2.0 ports

Různé:

*3 x Addressable Gen 2 headers

*1 x Clear CMOS header

*1 x COM Port header

*1 x Front Panel Audio header (F_AUDIO)

*1 x S/PDIF Out header

*1 x SPI TPM header (14-1 pin)

*1 x 10-1 pin Front System Panel header

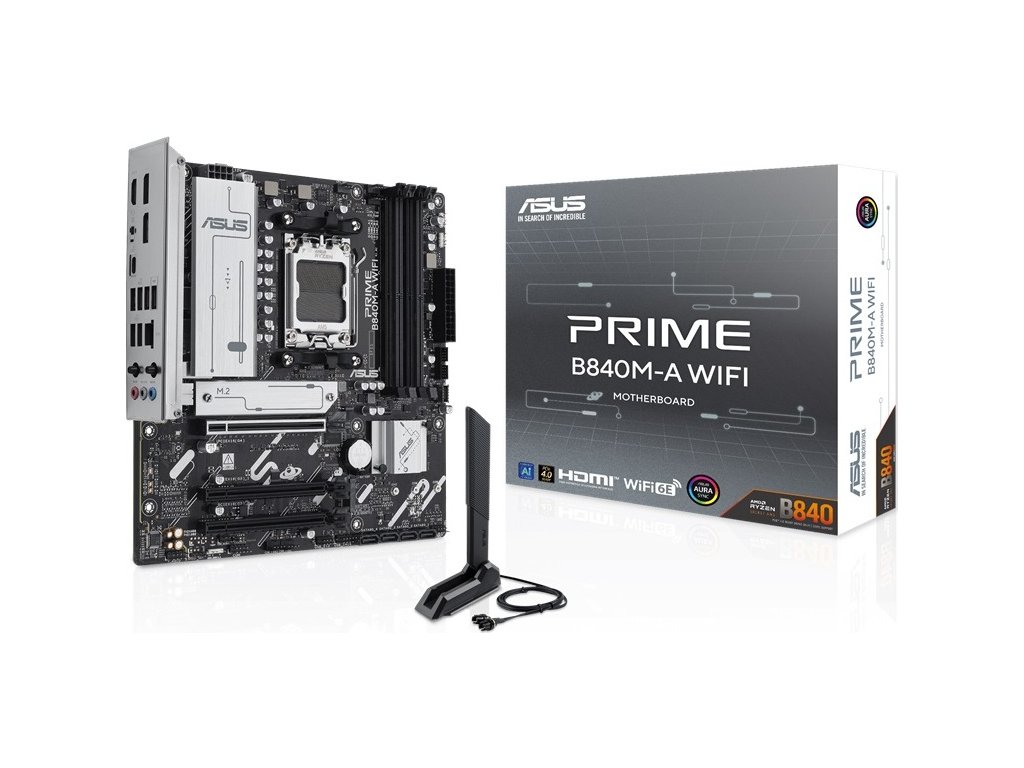

Příslušenství:

Kabely:

*2 x SATA 6Gb/s cables

Různé:

*1 x ASUS WiFi Q-Antenna

*1 x M.2 rubber package

*3 x Screw packages for M.2 SSD

Dokumenty:

1 x Quick start guide
