ARCTIC Freezer 7 X vícekompatibilní chladič CPU / Intel 115x /1200 / 775 / AMD FM1 / FM1+ / FM2 / FM2+ / AM3 / AM3+ /AM4

Detailní popis produktu

Freezer 7 X

Kompaktní vícekompatibilní chladič CPU

Kompatibilní se sloty Intel® a AMD®

• Předem nanesená tepelná pasta MX-2

• Prodloužená životnost díky nízké teplotě cívky

• Nižší spotřeba energie a menší vibrace díky nové technologie motoru

• Ofsetová tepelná potrubí zajišťují optimální odvod tepla

Kompatiblní s AMD® FM1/2(+), AM3(+), AM4 a Intel® 115x, 1200, 775

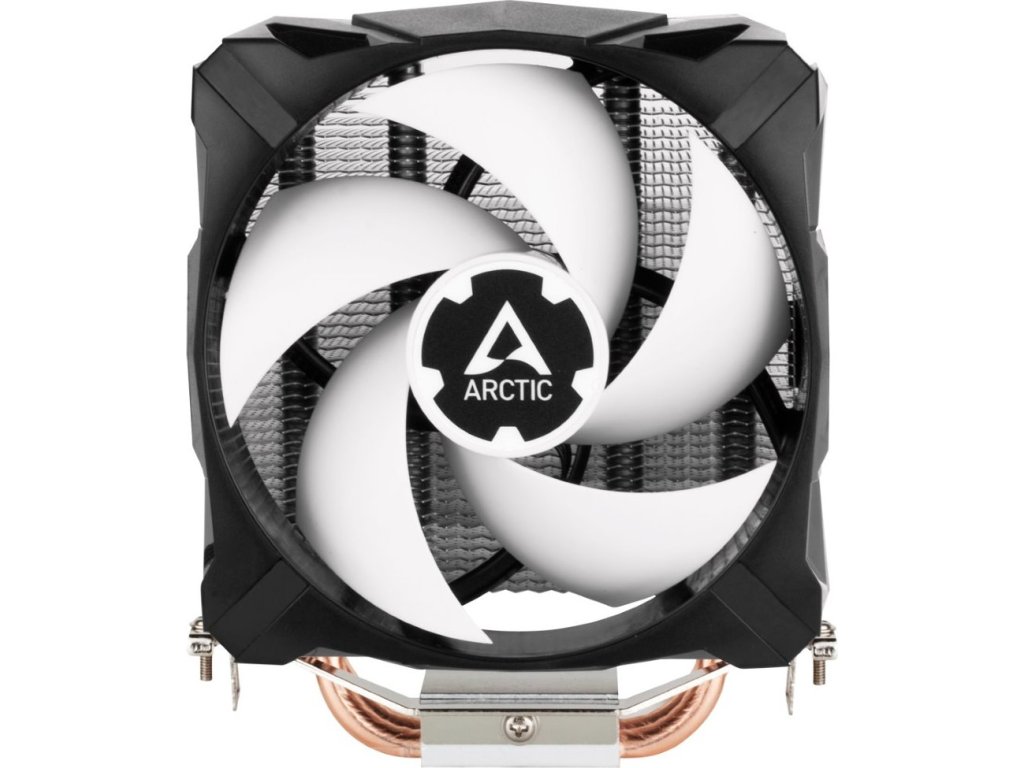

Freezer 7 X

Compact Multi-Compatible CPU Cooler

Compatible with Intel® & AMD® sockets

• Pre-applied MX-2 thermal paste

• Extended lifespan thanks to low coil temperature

• Lower power consumption and less vibration with

new motor technology

• Offset heat pipes ensure optimal heat dissipation

A worthy Freezer 7 Pro successor:

better price, better performance

The Freezer 7 X benefits from an improved heatsink design and a

reworked heat pipe layout. In conjunction with the fan, which is

optimized for high static pressure, we have been able to significantly

improve the Freezer 7 X's cooling performance. Optimized

and more effective manufacturing processes also allow us to offer

it at a better MSRP.

Specifications

Heat Pipe Direct Touch Ř 6 mm x 2

Heatsink Aluminium Fins x 44 Thickness: 0.4 mm

Thermal Compound MX-2 pre-applied

Dimensions 74.3 (L) x 110.5 (W) x 132.5 (H) mm

Weight 425 g

Compatibility AMD® FM1/2(+), AM3(+), AM4 Intel® 115x, 1200, 775

RAM Clearance no limit

Fan 1 x 92 mm, 300–2000 RPM (Controlled by PWM)

Current/Voltage 0.07 A/12 V

Bearings Fluid Dynamic Bearing

Noise Level 0.3 Sone

Connector 4-pin connector

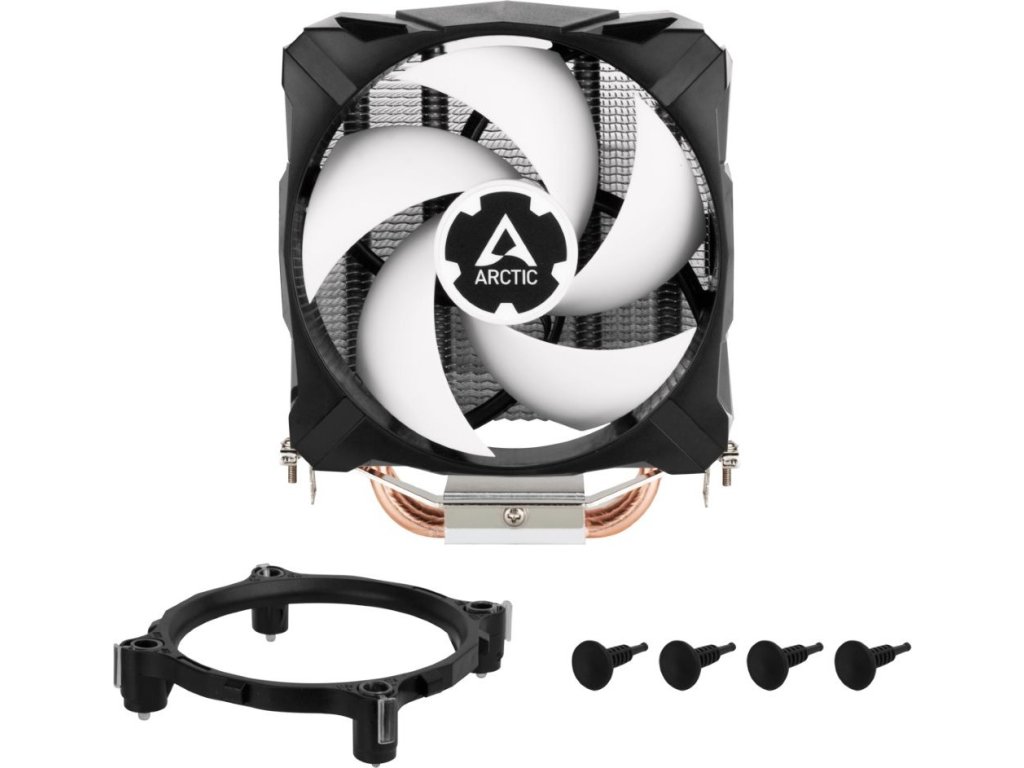

Compatible with Intel & AMD sockets

The Freezer 7 X is compatible with all current desktop sockets

from Intel and AMD. By using the mounting frame, simple installation

is possible without a need to remove the mainboard.

Pre-applied MX-2 thermal paste

Pre-applied, high-performing MX-2 thermal paste ensures

quick and clean assembly.

Longer lifespan thanks to its low coil temperature

In theory, reducing the coil temperature by 10 °C can double the

service life. With the use of new ARCTIC fan motors, we were

able to lower the temperature by 20 °C, which quadrupled the

lifespan of the fans.

Offset heat pipes enable optimal heat dissipation

The direct-touch heat pipes attached to the Freezer 7 X and an

optimized design of the 44 cooling fins together ensure that

the heat from the CPU can be ideally removed and released

into the air.

P-fan for Increased Performance

Inspired by the P-series, the Freezer 7 X’s fan benefits from all

of the advantages of P-fans:

• High static pressure for increased cooling performance

• Broad RPM range

• Lower power consumption

• Less vibration

• PWM for synchronous fan control

Hydrodynamic plain bearing

Thanks to a combination of alloy and lubricant developed in

Germany, the friction within the bearing is reduced, leading to

greater efficiency. In this way, less heat is generated, there is

less bearing noise and the life of the fan is extended.

Direct Touch Heatpipes

The Freezer 7 X uses direct-touch heatpipes. This ensures that

the heat to be dissipated is transferred directly to the heatpipes

without an additional material layer, and transported into the

heatsink via the pipes.
